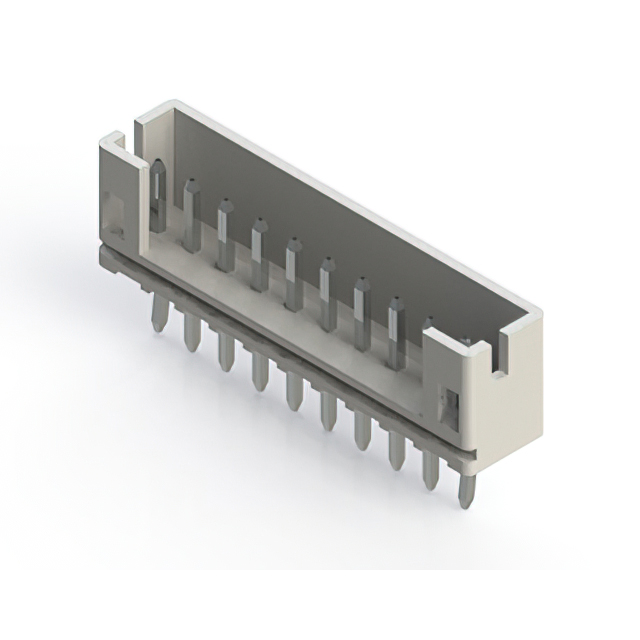

140-510-415-001

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 10 P.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-510-415-001

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 10 P.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-510-415-001	140-510 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.134 in
Contact Length - Post	-	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Solder Retention, Polarizing Key
Insulation Color	Natural	Natural
Insulation Height	0.24 in	0.185 - 0.24 in
Insulation Height	6.1 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Liquid Crystal Polymer (LCP), Polyamide (PA9T), Nylon 9T, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Surface Mount, Right Angle, Through Hole, Right Angle, Through Hole, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Solder, Kinked Pin, Solder
Voltage Rating	100 VAC	100 VAC

140-510 Series

PIN HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 10 CONTACTS, SURFACE MOUNT STRAIGHT, 140 SERIES

Part	Style	Insulation Color	Contact Shape	Insulation Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Features	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Voltage Rating	Contact Material	Connector Type	Mounting Type	Current Rating (Amps)	Fastening Type	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Contact Finish - Post	Contact Type	Termination	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Note	Pitch [x]	Pitch [x]	Contact Termination	Color
EDAC Inc. 140-510-417-011	Board to Cable/Wire	Natural	Square	Liquid Crystal Polymer (LCP)	1	-40 °C	105 ░C	All	Solder Retention	10	5.51 mm	0.217 in	100 VAC	Brass	Header	Surface Mount	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Solder
EDAC Inc. 140-510-417-060	Board to Cable/Wire	Natural	Square	Nylon 9T, Polyamide (PA9T)	1	-25 °C	85 °C	All	Solder Retention	10	5.51 mm	0.217 in	100 VAC	Brass	Header	Surface Mount, Right Angle	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Solder
EDAC Inc. 140-510-415-100	Board to Cable/Wire	Natural	Square	Polyamide (PA66), Nylon 6/6	1	-40 °C	105 ░C	All		10			100 VAC	Brass	Header	Through Hole, Right Angle	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Solder	0.185 in	4.7 mm	0.134 in	3.4 mm
EDAC Inc. 140-510-415-101	Board to Cable/Wire	Natural	Square	Polyamide (PA66), Nylon 6/6	1	-40 °C	105 ░C	All		10			100 VAC	Brass	Header	Through Hole	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Solder	0.24 in	6.1 mm
EDAC Inc. 140-510-210-011				Polyamide (PA66), Nylon 6/6	1	-25 °C	85 °C		Polarizing Key	10					Receptacle	Free Hanging (In-Line)		Detent Lock						Female Socket						Contacts Not Included	0.079 in	2 mm	Crimp	Natural
EDAC Inc. 140-510-415-001	Board to Cable/Wire	Natural	Square	Polyamide (PA66), Nylon 6/6	1	-40 °C	105 ░C	All		10			100 VAC	Brass	Header	Through Hole	2 A	Detent Lock	UL94 V-0	0.079 in	2 mm	Shrouded - 4 Wall	Tin	Male Pin	Kinked Pin, Solder	0.24 in	6.1 mm
