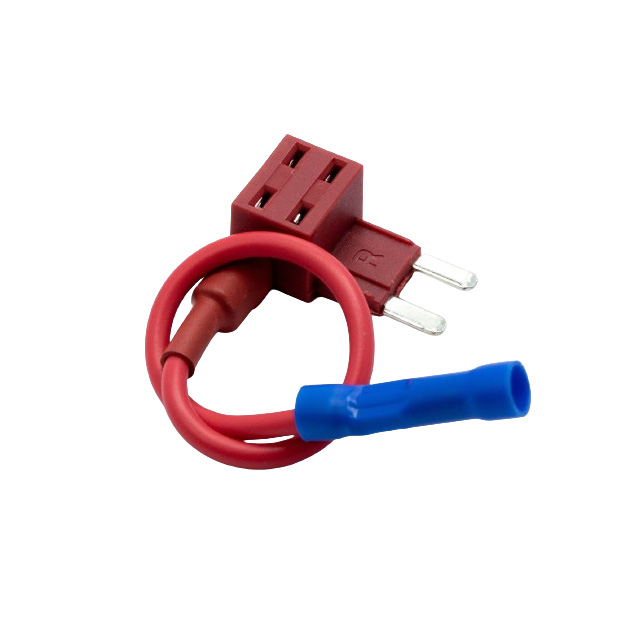

Specification	LPM-08-L

Contact Finish	Tin
Contact Material	Brass
Current Rating	30 A
For Use With/Related Products	APM, ANM
Fuse Length	0.433 in
Fuse Type	Blade
Fuse Width	0.152 in
Fuseholder Type	Holder
Mounting Type	Free Hanging (In-Line)
Number of Circuits	2
Orientation	Right Angle
Termination Style	Wire Leads
Voltage	58 V

LPM-08 Series

Part	Contact Finish	Mounting Type	Number of Circuits	Fuseholder Type	Contact Material	For Use With/Related Products	Fuse Width	Fuse Length	Orientation	Current Rating	Voltage	Termination Style	Fuse Type
OptiFuse LPM-08-L	Tin	Free Hanging (In-Line)	2	Holder	Brass	ANM APM	0.152 in	0.433 in	Right Angle	30 A	58 V	Wire Leads	Blade
OptiFuse LPM-08-3	Tin	Free Hanging (In-Line)	3	Holder	Brass	ANM APM	0.152 in	0.433 in	Right Angle	20 A	58 V	Wire Leads	Blade
