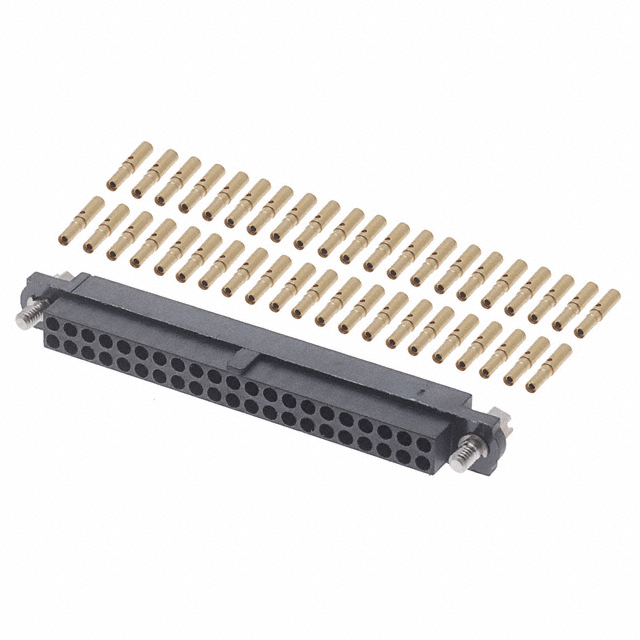

M80-4604205

Active

Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,42 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,M2X0.4 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN Technical Data Sheet EN +5

M80-4604205

Active

Harwin Inc.

HEADER CONNECTOR,CABLE MOUNT,PLUG,42 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,M2X0.4 ROHS COMPLIANT: YES

Deep-Dive with AI

Documents3D Product Image EN Technical Data Sheet EN +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4604205

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Polarizing Key, Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	42
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

M80-460 Series

Part	Number of Positions	Features	Color	Cable Termination	Mounting Type	Wire Gauge	Wire Type	Pitch [x]	Pitch [x]	Contact Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Contact Finish	Number of Rows
Harwin Inc. M80-4603805	38	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4602842	28	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4605042	50	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4601842	18	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4604205	42	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4604642	46	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4602805	28	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4601005	10	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4603205		Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2
Harwin Inc. M80-4602642	26	Jackscrews Polarizing Key	Black	Crimp	Free Hanging (In-Line)	22 AWG	Discrete	0.079 in	2 mm	Female Socket	Receptacle	0.3 Ám	11.8 Áin	2 mm	0.079 in	Gold	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.93
		10	$ 33.22
		25	$ 31.78
		50	$ 30.75
		100	$ 29.73
		250	$ 28.09
Newark	Each	10	$ 34.72
		50	$ 31.06
		100	$ 30.05
		250	$ 28.42
		500	$ 27.61
		1000	$ 27.00

Description

General part information

M80-460 Series

42 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
