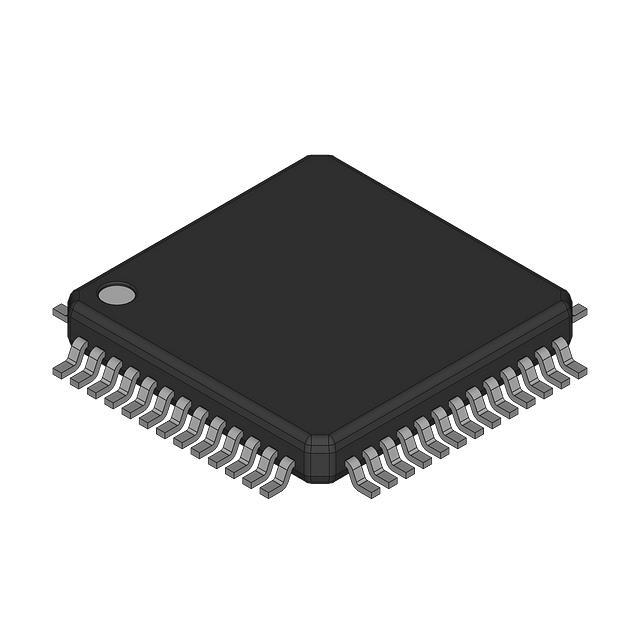

CY7B9945V-2AXC

Obsolete

Infineon Technologies

IC CLK BUFF 11OUT 200MHZ 52LQFP

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC CLK BUFF 11OUT 200MHZ 52LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	CY7B9945V-2AXC

Differential - Input:Output	Yes/No
Frequency - Max [Max]	200 MHz
Input	LVPECL, LVTTL
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output	LVTTL
Package / Case	52-LQFP
PLL	True
Ratio - Input:Output [custom]	4
Ratio - Input:Output [custom]	10
Supplier Device Package	52-TQFP (10x10)
Type	Clock Buffer, Fanout Distribution
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	2.97 V

Part	Package / Case	Differential - Input:Output	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Frequency - Max [Max]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Input	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Output
Infineon Technologies CY7B9945V-5AXC	52-LQFP	Yes/No	4	10	200 MHz	Surface Mount	2.97 V	3.63 V	52-TQFP (10x10)	LVPECL LVTTL	Clock Buffer Fanout Distribution	70 °C	0 °C	1	LVTTL
Infineon Technologies CY7B9945V-5AXC	52-LQFP	Yes/No	4	10	200 MHz	Surface Mount	2.97 V	3.63 V	52-TQFP (10x10)	LVPECL LVTTL	Clock Buffer Fanout Distribution	70 °C	0 °C	1	LVTTL
Infineon Technologies CY7B9945V-2AXC	52-LQFP	Yes/No	4	10	200 MHz	Surface Mount	2.97 V	3.63 V	52-TQFP (10x10)	LVPECL LVTTL	Clock Buffer Fanout Distribution	70 °C	0 °C	1	LVTTL
Infineon Technologies CY7B9945V-5AXCT	52-LQFP	Yes/No	4	10	200 MHz	Surface Mount	2.97 V	3.63 V	52-TQFP (10x10)	LVPECL LVTTL	Clock Buffer Fanout Distribution	70 °C	0 °C	1	LVTTL
Infineon Technologies CY7B9945V-5AXCT	52-LQFP	Yes/No	4	10	200 MHz	Surface Mount	2.97 V	3.63 V	52-TQFP (10x10)	LVPECL LVTTL	Clock Buffer Fanout Distribution	70 °C	0 °C	1	LVTTL
Infineon Technologies CY7B9945V-2AXIT	52-LQFP	Yes/No	4	10	200 MHz	Surface Mount	2.97 V	3.63 V	52-TQFP (10x10)	LVPECL LVTTL	Clock Buffer Fanout Distribution	85 °C	-40 °C	1	LVTTL
Infineon Technologies CY7B9945V-2AXC	52-LQFP	Yes/No	4	10	200 MHz	Surface Mount	2.97 V	3.63 V	52-TQFP (10x10)	LVPECL LVTTL	Clock Buffer Fanout Distribution	70 °C	0 °C	1	LVTTL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clock Buffer, Fanout Distribution IC 200MHz 1 52-LQFP
