Q-2L0750013024i

Active

Amphenol Custom Cable

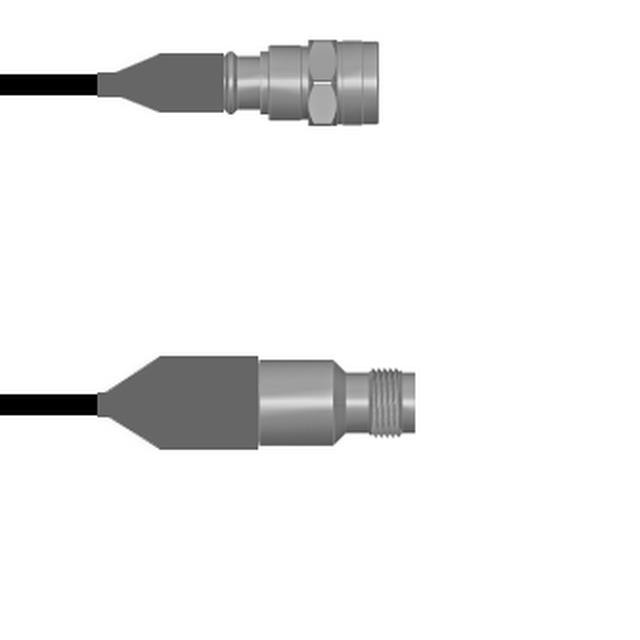

CBL ASSY RPTNC-NTYPE JCK-PLG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2L0750013024i

Active

Amphenol Custom Cable

CBL ASSY RPTNC-NTYPE JCK-PLG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2L0750013024i

1st Connector	RP-TNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	RP-TNC to N-Type

Q-2L0750 Series

Part	Cable Type	2nd Connector	Length	Length	Length	2nd Connector Mounting Type	1st Connector Mounting Type	Style	Frequency - Max [Max]	1st Connector	1st Contact Gender	2nd Contact Gender	Overall Impedance	Color	Features
Amphenol Custom Cable Q-2L0750013002M	LMR 400	N-Type Plug	6.6 ft	78.7 in	2 m	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L0750013036i	LMR 400	N-Type Plug		36 in	91.44 cm	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L0750013072i	LMR 400	N-Type Plug	6 ft	72 in	1.8 m	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L0750013084i	LMR 400	N-Type Plug	7 ft	84 in	2.1 m	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L07500131.5M	LMR 400	N-Type Plug	4.9 ft	59.1 in	1.5 m	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L0750013003M	LMR 400	N-Type Plug	9.8 '	118.1 in	3 m	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L0750013060i	LMR 400	N-Type Plug	5 ft	5 '	1.5 m	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L0750013024i	LMR 400	N-Type Plug		24 "	609.6 mm	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L0750013108i	LMR 400	N-Type Plug	9 ft	108 in	2.7 m	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2L07500132.5M	LMR 400	N-Type Plug	8.2 '	98.4 in	2.5 m	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-TNC to N-Type	6000 MHz	RP-TNC Jack	Male	Male	50 Ohms	Black	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.11
		25	$ 80.54
		50	$ 78.98
		100	$ 77.42
		250	$ 75.86

Description

General part information

Q-2L0750 Series

Cable Assembly Coaxial RP-TNC to N-Type LMR 400 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
