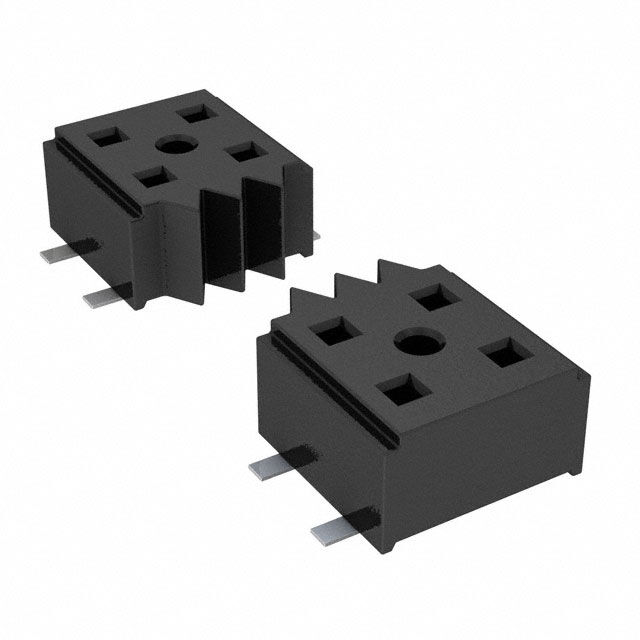

CLT-109-02-L-D-A-P-TR

Active

Samtec Inc.

CONN RCPT 18POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCLT Datasheet Datasheet +1

CLT-109-02-L-D-A-P-TR

Active

Samtec Inc.

CONN RCPT 18POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsCLT Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLT-109-02-L-D-A-P-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	4.1 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	2.1 mm
Insulation Height	0.083 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

CLT-109 Series

Part	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Insulation Material	Contact Material	Contact Shape	Material Flammability Rating	Mounting Type	Termination	Features	Number of Positions	Number of Rows	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. CLT-109-02-L-D-A-P-TR	All	10 çin	0.25 çm	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder	Board Guide Pick and Place	18	2	2.1 mm	0.083 "	Gold	Tin	Black	-55 °C	125 °C	Receptacle	0.079 in	2 mm	Push-Pull
Samtec Inc. CLT-109-01-L-D	All	10 çin	0.25 çm	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Through Hole	Solder		18	2	2.1 mm	0.083 "	Gold	Tin	Black	-55 °C	125 °C	Receptacle	0.079 in	2 mm	Push-Pull	2.16 mm	0.085 in
Samtec Inc. CLT-109-02-G-D-A-P	All	10 çin	0.25 çm	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder	Board Guide Pick and Place	18	2	2.1 mm	0.083 "	Gold	Gold	Black	-55 °C	125 °C	Receptacle	0.079 in	2 mm	Push-Pull			3 µin	0.076 µm
Samtec Inc. CLT-109-02-L-D-BE-A-K	All	10 çin	0.25 çm	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder	Board Guide Pick and Place	18	2	2.1 mm	0.083 "	Gold	Tin	Black	-55 °C	125 °C	Receptacle Bottom Entry	0.079 in	2 mm	Push-Pull
Samtec Inc. CLT-109-02-G-D	All	10 çin	0.25 çm	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder		18	2	2.1 mm	0.083 "	Gold	Gold	Black	-55 °C	125 °C	Receptacle	0.079 in	2 mm	Push-Pull			3 µin	0.076 µm
Samtec Inc. CLT-109-02-L-D-BE-A-K-TR	All	10 çin	0.25 çm	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder	Board Guide Pick and Place	18	2	2.1 mm	0.083 "	Gold	Tin	Black	-55 °C	125 °C	Receptacle Bottom Entry	0.079 in	2 mm	Push-Pull
Samtec Inc. CLT-109-02-H-D-P	All	30 Áin	0.76 Ám	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder	Pick and Place	18	2	2.1 mm	0.083 "	Gold	Gold	Black	-55 °C	125 °C	Receptacle	0.079 in	2 mm	Push-Pull			3 µin	0.076 µm
Samtec Inc. CLT-109-02-L-D-A-K-TR	All	10 çin	0.25 çm	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder	Board Guide Pick and Place	18	2	2.1 mm	0.083 "	Gold	Tin	Black	-55 °C	125 °C	Receptacle	0.079 in	2 mm	Push-Pull
Samtec Inc. CLT-109-02-G-D-A	All	10 çin	0.25 çm	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder	Board Guide	18	2	2.1 mm	0.083 "	Gold	Gold	Black	-55 °C	125 °C	Receptacle	0.079 in	2 mm	Push-Pull			3 µin	0.076 µm
Samtec Inc. CLT-109-02-H-D-BE-P	All	30 Áin	0.76 Ám	4.1 A	0.079 in	2 mm	Female Socket	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	UL94 V-0	Surface Mount	Solder	Pick and Place	18	2	2.1 mm	0.083 "	Gold	Gold	Black	-55 °C	125 °C	Receptacle Bottom Entry	0.079 in	2 mm	Push-Pull			3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.84
		25	$ 2.73
		50	$ 2.62
		100	$ 2.52
		500	$ 2.14
	Digi-Reel®	1	$ 2.84
		25	$ 2.73
		50	$ 2.62
		100	$ 2.52
		500	$ 2.14
	Tape & Reel (TR)	1225	$ 1.77
		3675	$ 1.69

Description

General part information

CLT-109 Series

18 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources

CLT Datasheet

Datasheet
