VWS3775-C

Active

Panduit Corp

VERTICAL WIRE SADDLE, .37" X .75" (9.398

Search across all available documentation for this part.

Active

Panduit Corp

VERTICAL WIRE SADDLE, .37" X .75" (9.398

Technical Specifications

Parameters and characteristics for this part

Specification	VWS3775-C

Color	Natural
Height [z]	1.172 in
Height [z]	29.77 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [x]	0.375 in
Opening Size [x]	9.52 mm
Opening Size [z]	19.05 mm
Opening Size [z]	0.75 in
Panel Hole Size [Max]	4.88 mm
Panel Hole Size [Max]	0.192 in
Panel Hole Size [Min]	4.75 mm
Panel Hole Size [Min]	0.187 in
Panel Thickness [Max]	2.03 mm
Panel Thickness [Max]	0.08 in
Panel Thickness [Min]	0.03 in
Panel Thickness [Min]	0.76 mm
Type	Clip, Wire Saddle
Width	0.25 in
Width	6.35 mm

VERTICAL WIRE SADDLE, .37" X .75" (9.398

Part	Material Flammability Rating	Height [z]	Height [z]	Color	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Width	Width	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Material	Opening Size [x]	Opening Size [x]	Opening Size [z]	Opening Size [z]	Mounting Type	Type
Panduit Corp VWS3775-C	UL94 V-2	1.172 in	29.77 mm	Natural	2.03 mm	0.08 in	0.03 in	0.76 mm	0.25 in	6.35 mm	4.75 mm	4.88 mm	0.187 in	0.192 in	Polyamide (PA66), Nylon 6/6	0.375 in	9.52 mm	19.05 mm	0.75 in	Arrowhead, Winged	Clip, Wire Saddle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

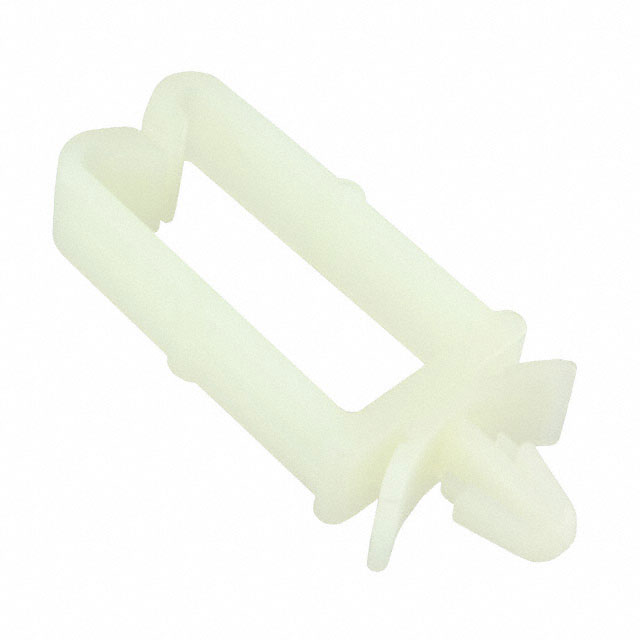

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.375" L x 0.750" H (9.52mm x 19.05mm)
