L717SDEH09P

Active

Amphenol ICC (Commercial Products)

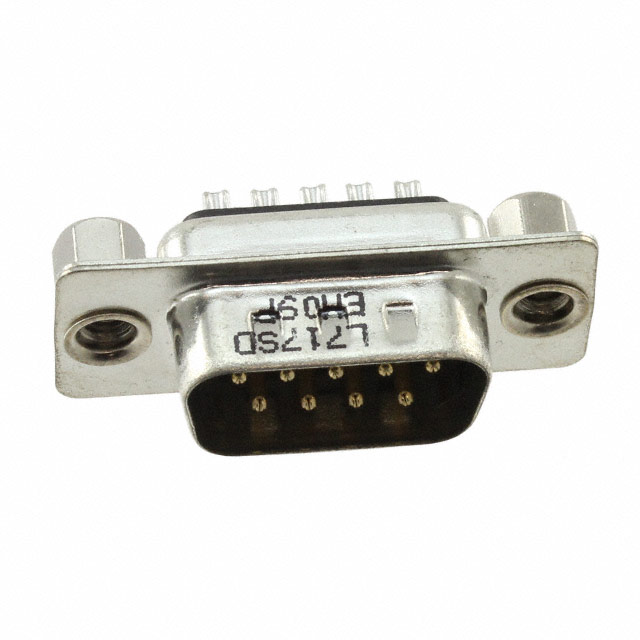

CONN D-SUB PLUG 9POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

L717SDEH09P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDEH09P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L717SDEH09 Series

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Contact Form	Connector Type	Flange Feature	Dielectric Material	Connector Style	Number of Rows	Termination	Voltage Rating	Contact Material	Contact Type	Features	Number of Positions	Mounting Type	Color	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L717SDEH09POL2GC309	Gold	-55 °C	125 °C	UL94 V-0	DE E	1	3 A	0.76 Ám	30 Áin	Stamped	Male Pins Plug	4-40 Board Side	Thermoplastic Glass Filled	D-Sub	2	Solder	250 VDC	Brass	Signal	Grounding Indents	9	Through Hole	Black
Amphenol ICC (Commercial Products) L717SDEH09POL2RM5	Gold	-55 °C	125 °C	UL94 V-0	DE E	1	3 A			Stamped	Male Pins Plug	4-40 Board Side	Thermoplastic Glass Filled	D-Sub	2	Solder	250 VDC	Brass	Signal	Board Lock Grounding Indents	9	Through Hole	Black	Flash
Amphenol ICC (Commercial Products) L717SDEH09P	Gold	-55 °C	105 ░C	UL94 V-0	DE E	1	3 A			Stamped	Male Pins Plug	Cable Side	Thermoplastic Glass Filled	D-Sub	2		250 VDC	Brass	Signal	Grounding Indents	9	Free Hanging (In-Line)	Black	Flash	20 AWG
Amphenol ICC (Commercial Products) L717SDEH09PVF	Gold	-55 °C	105 ░C	UL94 V-0	DE E	1	3 A			Stamped	Male Pins Plug	Cable Side (4-40) Mating Side Female Screwlock (4-40)	Thermoplastic Glass Filled	D-Sub	2		250 VDC	Brass	Signal	Grounding Indents	9	Free Hanging (In-Line)	Black	Flash	20 AWG
Amphenol ICC (Commercial Products) L717SDEH09POL2RM5GC309	Gold	-55 °C	125 °C	UL94 V-0	DE E	1	3 A	0.76 Ám	30 Áin	Stamped	Male Pins Plug	4-40 Board Side	Thermoplastic Glass Filled	D-Sub	2	Solder	250 VDC	Brass	Signal	Board Lock Grounding Indents	9	Through Hole	Black
Amphenol ICC (Commercial Products) L717SDEH09POL2C309N25	Gold	-55 °C	125 °C	UL94 V-0	DE E	1	3 A	0.76 Ám	30 Áin	Stamped	Male Pins Plug	4-40 Board Side	Thermoplastic Glass Filled	D-Sub	2	Solder	250 VDC	Brass	Signal	Grounding Indents	9	Through Hole	Black
Amphenol ICC (Commercial Products) L717SDEH09POL2RM8C309	Gold	-55 °C	125 °C	UL94 V-0	DE E	1	3 A	0.76 Ám	30 Áin	Stamped	Male Pins Plug	Board Side (4-40) Mating Side Female Screwlock (4-40)	Thermoplastic Glass Filled	D-Sub	2	Solder	250 VDC	Brass	Signal	Board Lock Grounding Indents	9	Through Hole	Black
