6803332123F

Active

DIALIGHT

10MM HO/O PMI-6VDC

Search across all available documentation for this part.

Active

DIALIGHT

10MM HO/O PMI-6VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6803332123F	6803332 Series

Current	30 mA	30 mA
Lamp Color	Yellow	Yellow
Millicandela Rating	1455 mcd	1025 - 1455 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.4 mm
Panel Cutout Dimensions [diameter]	0.41 in	0.41 in
Panel Cutout Dimensions [diameter]	10.41 mm	10.41 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Voltage	6 V	6 V

10MM HO/O PMI-6VDC

Part	Voltage	Current	Type	Panel Cutout Shape	Millicandela Rating	Lamp Color	Termination Style	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Ratings	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6803332223F	6 V	30 mA	LED	Round	1025 mcd	Yellow	Solder Lug	0.37 in	9.4 mm	DC
DIALIGHT 6803332123F	6 V	30 mA	LED	Round	1455 mcd	Yellow	Solder Lug			DC	0.41 in	10.41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	225	$ 4.33

General part information

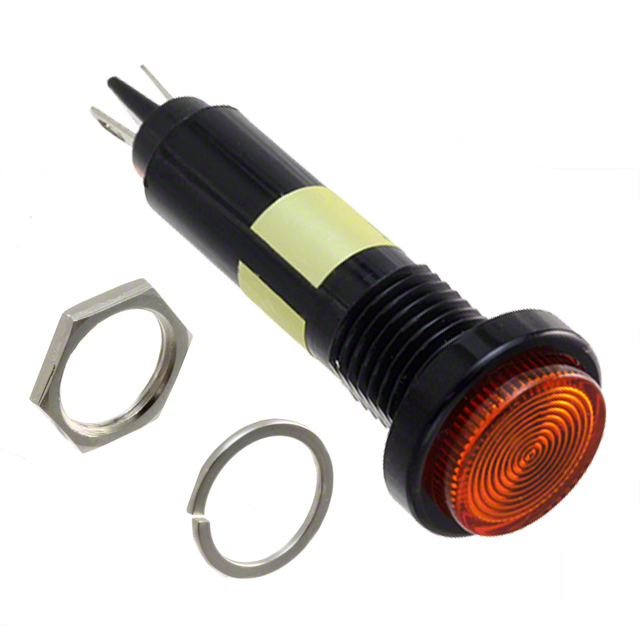

LED Panel Indicator Yellow 6V 30mA Solder Lug

Technical documentation and resources

No documents available
