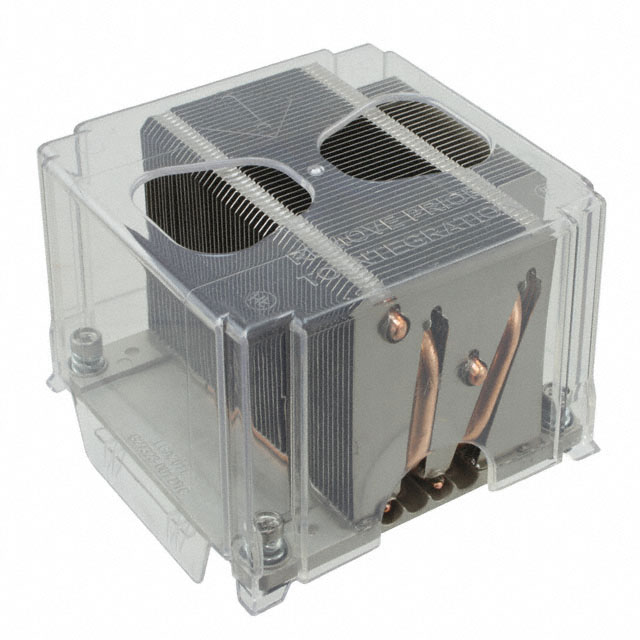

DHS-B9292-05A

Obsolete

Delta Electronics

HEATSINK ASSY INTEL LGA2011

Search across all available documentation for this part.

Obsolete

Delta Electronics

HEATSINK ASSY INTEL LGA2011

Technical Specifications

Parameters and characteristics for this part

Part	Material	Length [x]	Length [x]	Shape	Thermal Resistance @ Natural	Fin Height	Fin Height	Package Cooled	Attachment Method	Type	Width [y]	Width [y]	Fin Height [z]	Fin Height [z]
Delta Electronics DHS-B9292-04A	Aluminum	3.602 in	91.5 mm	Fins Square	0.24 °C/W	1.004 in	25.5 mm	LGA	Bolt On	Board Level	3.602 in	91.5 mm
Delta Electronics DHS-B9292-05A	Aluminum	3.602 in	91.5 mm	Fins Square	0.17 °C/W			LGA	Bolt On	Board Level	3.602 in	91.5 mm	64 mm	2.519 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink LGA Aluminum Board Level
