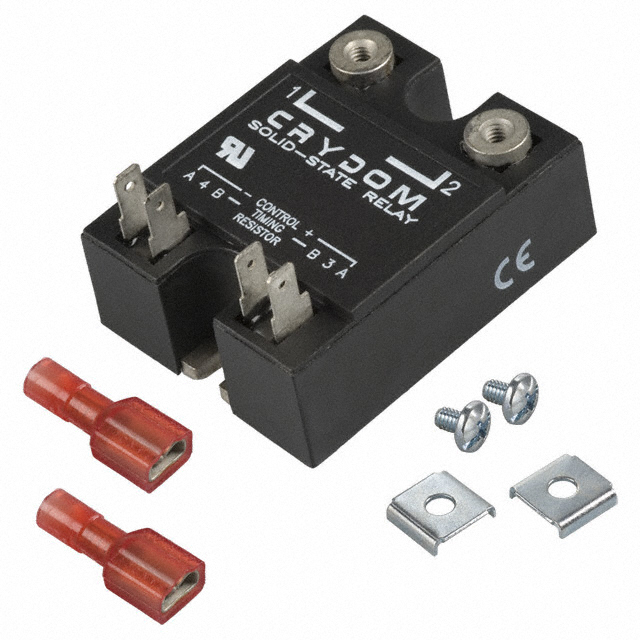

DSD2410

Sensata-Crydom

RELAY TIME DELAY 8.3SEC 10A 280V

Search across all available documentation for this part.

Sensata-Crydom

RELAY TIME DELAY 8.3SEC 10A 280V

Technical Specifications

Parameters and characteristics for this part

Specification	DSD2410

Contact Rating @ Voltage	10 A, 280 VAC
Delay Time [Max]	8.3 Sec
Delay Time [Min]	0.1 Sec
Function	On-Delay
Mounting Type	Chassis Mount
Relay Type	Solid State Relay
Termination Style	0.187 in, 4.7 mm
Termination Style	Quick Connect, Screw Terminal
Timing Adjustment Method	External Resistor
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	3.5 V

Part	Timing Adjustment Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Initiate Method	Termination Style	Termination Style	Delay Time [Min]	Delay Time [Max]	Contact Rating @ Voltage	Relay Type	Mounting Type	Function
Sensata-Crydom DSD2410	External Resistor	3.5 V	15 V	Input Voltage	0.187 in 4.7 mm	Quick Connect Screw Terminal	0.1 Sec	8.3 Sec	10 A 280 VAC	Solid State Relay	Chassis Mount	On-Delay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 207.54

General part information

On-Delay Time Delay Relay SPST-NO (1 Form A) 0.1 Sec ~ 8.3 Sec Delay 10A @ 280VAC Chassis Mount
