307-024-458-112

Active

EDAC Inc.

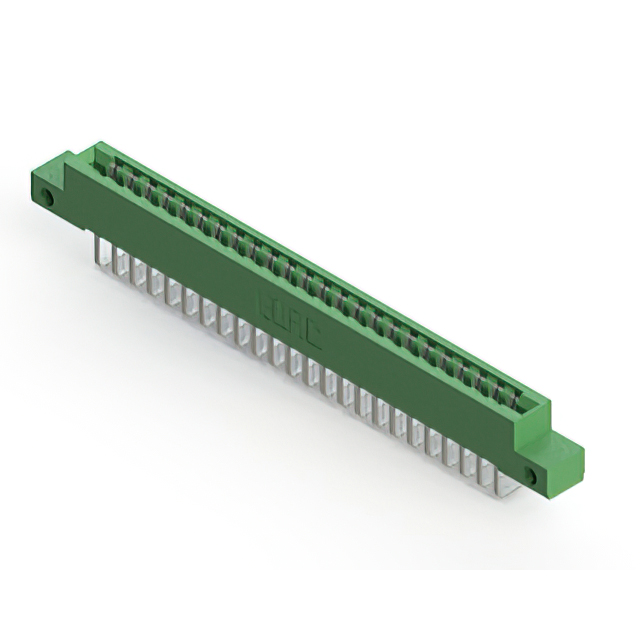

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-024-458-112

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-024-458-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions/Bay/Row [custom]	24
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-024 Series

...

Part	Termination Rows	Color	Read Out	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Gender	Contact Type	Contact Material	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Card Type	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 307-024-458-112	1	Green	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Female	Semi Bellows	Copper Alloy	Tin	0.156 in	3.96 mm	Through Hole Right Angle	Non Specified - Single Edge	Polyester Thermoplastic	-40 °C	105 ░C	24	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Solder
EDAC Inc. 307-024-525-112	1	Green	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Female	Semi Bellows	Copper Alloy	Gold	0.156 in	3.96 mm	Through Hole	Non Specified - Single Edge	Polyester Thermoplastic	-40 °C	105 ░C	24	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Solder	10 Áin	0.25 Ám
EDAC Inc. 307-024-501-107	1	Green	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	48	Female	Semi Bellows	Copper Alloy	Gold	0.156 in	3.96 mm	Through Hole	Non Specified - Dual Edge	Polyester Thermoplastic	-40 °C	105 ░C	24		Flush Mount M3 Threaded Insert Top Opening		Solder Eyelet(s)	10 Áin	0.25 Ám
EDAC Inc. 307-024-457-101	1	Green	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	48	Female	Semi Bellows	Copper Alloy	Tin	0.156 in	3.96 mm	Through Hole Right Angle	Non Specified - Dual Edge	Polyester Thermoplastic	-40 °C	105 ░C	24				Solder
EDAC Inc. 307-024-457-107	1	Green	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	48	Female	Semi Bellows	Copper Alloy	Tin	0.156 in	3.96 mm	Through Hole Right Angle	Non Specified - Dual Edge	Polyester Thermoplastic	-40 °C	105 ░C	24		Flush Mount M3 Threaded Insert Top Opening		Solder
EDAC Inc. 307-024-459-208	2	Green	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Female	Semi Bellows	Copper Alloy	Tin	0.156 in	3.96 mm	Through Hole Right Angle	Non Specified - Dual Edge	Polyester Thermoplastic	-40 °C	105 ░C	12		4-40 Flush Mount Threaded Insert Top Opening		Solder
EDAC Inc. 307-024-425-101	1	Green	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Female	Semi Bellows	Copper Alloy	Tin	0.156 in	3.96 mm	Through Hole	Non Specified - Single Edge	Polyester Thermoplastic	-40 °C	105 ░C	24				Solder
EDAC Inc. 307-024-455-258	2	Green	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Female	Semi Bellows	Copper Alloy	Tin	0.156 in	3.96 mm	Board Edge Straddle Mount	Non Specified - Dual Edge	Polyester Thermoplastic	-40 °C	105 ░C	12		4-40 Flush Mount Threaded Insert Top Opening		Solder Eyelet(s)
EDAC Inc. 307-024-556-202	2	Green	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Female	Semi Bellows	Copper Alloy	Gold	0.156 in	3.96 mm	Board Edge Straddle Mount	Non Specified - Dual Edge	Polyester Thermoplastic	-40 °C	105 ░C	12	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Solder	10 Áin	0.25 Ám	Card Extender
EDAC Inc. 307-024-460-203	2	Green	Dual	2	1.37 mm	0.054 "	1.78 mm	0.07 in	24	Female	Semi Bellows	Copper Alloy	Tin	0.156 in	3.96 mm	Board Edge Straddle Mount	Non Specified - Dual Edge	Polyester Thermoplastic	-40 °C	105 ░C	12	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.05
Newark	Each	1	$ 18.23
		100	$ 11.19
		250	$ 10.04
		500	$ 9.02
		1000	$ 7.47

Description

General part information

307-024 Series

24 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
