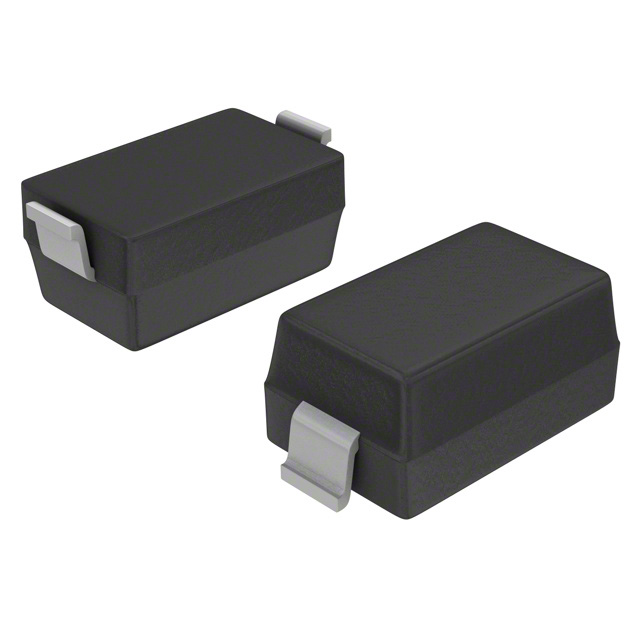

CDBM2100-HF

Active

Comchip Technology

DIODE SCHOTTKY 100V 2A 2-PIN SOD-123F T/R

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 100V 2A 2-PIN SOD-123F T/R

Technical Specifications

Parameters and characteristics for this part

Specification	CDBM2100-HF

Capacitance @ Vr, F	160 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123T
Speed	200 mA, 500 ns
Supplier Device Package	Mini SMA/SOD-123
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	850 mV

DIODE SCHOTTKY 100V 2A 2-PIN SOD-123F T/R

Part	Speed	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Capacitance @ Vr, F	Package / Case	Technology	Supplier Device Package	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr
Comchip Technology CDBM2100-HF	200 mA, 500 ns	850 mV	100 V	Surface Mount	160 pF	SOD-123T	Schottky	Mini SMA/SOD-123	2 A	150 °C	-55 °C	500 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 2A Surface Mount Mini SMA/SOD-123
