307-021-527-101

Active

EDAC Inc.

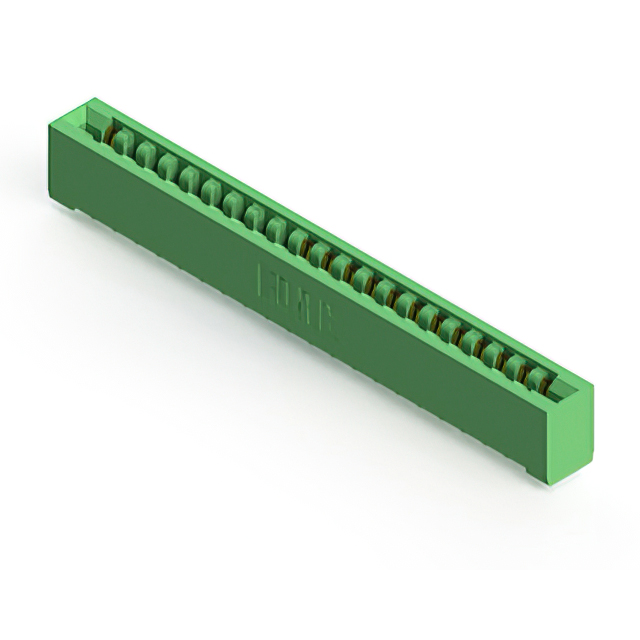

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

307-021-527-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-021-527-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	21
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-021 Series

...

Part	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Type	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Contact Material	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Read Out	Gender	Number of Rows	Termination	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 307-021-421-112	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	42	Copper Alloy	Through Hole	Green	-40 °C	105 ░C	Tin	Dual	Female	2	Solder	1
EDAC Inc. 307-021-431-102	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	21	Copper Alloy	Through Hole	Green	-40 °C	105 ░C	Tin	Single	Female	1	Solder	1
EDAC Inc. 307-021-557-104	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	42	Copper Alloy	Through Hole Right Angle	Green	-40 °C	105 ░C	Gold	Dual	Female	2	Wire Wrap	1	10 Áin	0.25 Ám
EDAC Inc. 307-021-501-178	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		42	Copper Alloy	Through Hole	Green	-40 °C	105 ░C	Gold	Dual	Female	2	Solder Eyelet(s)	1	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 307-021-527-101	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge				21	Copper Alloy	Through Hole	Green	-40 °C	105 ░C	Gold	Single	Female	1	Solder	1	10 Áin	0.25 Ám
EDAC Inc. 307-021-401-178	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		42	Copper Alloy	Through Hole	Green	-40 °C	105 ░C	Tin	Dual	Female	2	Solder Eyelet(s)	1			Card Guides
EDAC Inc. 307-021-447-102	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	21	Copper Alloy	Through Hole	Green	-40 °C	105 ░C	Tin	Single	Female	1	Wire Wrap	1
EDAC Inc. 307-021-557-108	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		42	Copper Alloy	Through Hole Right Angle	Green	-40 °C	105 ░C	Gold	Dual	Female	2	Wire Wrap	1	10 Áin	0.25 Ám
EDAC Inc. 307-021-427-107	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge		Flush Mount M3 Threaded Insert Top Opening		21	Copper Alloy	Through Hole	Green	-40 °C	105 ░C	Tin	Single	Female	1	Solder	1
EDAC Inc. 307-021-559-107	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge		Flush Mount M3 Threaded Insert Top Opening		21	Copper Alloy	Through Hole Right Angle	Green	-40 °C	105 ░C	Gold	Single	Female	1	Solder	1	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.16
Newark	Each	1	$ 13.07
		100	$ 7.38
		250	$ 6.52
		500	$ 6.10
		1000	$ 4.93

Description

General part information

307-021 Series

21 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
