RLB1014-332KL

Active

Bourns Inc.

INDUCTOR,FERRITE,3.3MH,10+% TOL,10-% TOL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RLB1014-332KL

Active

Bourns Inc.

INDUCTOR,FERRITE,3.3MH,10+% TOL,10-% TOL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RLB1014-332KL

Current Rating (Amps)	0.22 A
DC Resistance (DCR) [Max]	10.5 Ohm
Frequency - Self Resonant	450 kHz
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Inductance	3300 µH
Inductance Frequency - Test	252 kHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	50, 252 kHz
Shielding	Unshielded
Size / Dimension [diameter]	8.7 mm
Size / Dimension [diameter]	0.343 in
Tolerance	10 %
Type	Wirewound, Drum Core

RLB1014 Series

Part	Inductance Frequency - Test	Current Rating (Amps)	Material - Core	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Shielding	Mounting Type	Current - Saturation (Isat)	Package / Case	Q @ Freq	Type	Frequency - Self Resonant	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	DC Resistance (DCR)
Bourns Inc. RLB1014-102KL	252 kHz	360 mA	Ferrite	4.1 Ohm	125 °C	-40 °C	10 %	Unshielded	Through Hole	600 mA	Radial Vertical Cylinder	50 252 kHz	Drum Core Wirewound	900 kHz	8.7 mm	0.343 in	13 mm	0.512 "	1 mH
Bourns Inc. RLB1014-223KL	79.6 kHz	0.092 A	Ferrite	58 Ohm	125 °C	-40 °C	10 %	Unshielded	Through Hole	95 mA	Radial Vertical Cylinder	45 79.6 kHz	Drum Core Wirewound	220 kHz	8.7 mm	0.343 in	13 mm	0.512 "	22 mH
Bourns Inc. RLB1014-332KL	252 kHz	0.22 A	Ferrite	10.5 Ohm	125 °C	-40 °C	10 %	Unshielded	Through Hole		Radial Vertical Cylinder	50 252 kHz	Drum Core Wirewound	450 kHz	8.7 mm	0.343 in	13 mm	0.512 "	3300 µH
Bourns Inc. RLB1014-221KL	796 kHz	0.62 A	Ferrite	1.3 Ohm	125 °C	-40 °C	10 %	Unshielded	Through Hole	1.45 A	Radial Vertical Cylinder	40 796 kHz	Drum Core Wirewound	2.1 MHz	8.7 mm	0.343 in	12 mm	0.472 "	220 µH
Bourns Inc. RLB1014-222KL	252 kHz	0.26 A	Ferrite		125 °C	-40 °C	10 %	Unshielded	Through Hole	270 mA	Radial Vertical Cylinder	50 252 kHz	Drum Core Wirewound	550 kHz	8.7 mm	0.343 in	13 mm	0.512 "	2.2 mH	8.4 Ohm
Bourns Inc. RLB1014-681KL	796 kHz	0.42 A	Ferrite		125 °C	-40 °C	10 %	Unshielded	Through Hole	850 mA	Radial Vertical Cylinder	35 796 kHz	Drum Core Wirewound	1.15 MHz	8.7 mm	0.343 in	13 mm	0.512 "	680 µH	2.85 Ohm
Bourns Inc. RLB1014-123KL	79.6 kHz	125 mA	Ferrite	36 Ohm	125 °C	-40 °C	10 %	Unshielded	Through Hole	130 mA	Radial Vertical Cylinder	50 79.6 kHz	Drum Core Wirewound	280 kHz	8.7 mm	0.343 in	13 mm	0.512 "	12 mH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.40
		10	$ 0.33
		25	$ 0.31
		50	$ 0.29
		150	$ 0.26
		300	$ 0.25
		600	$ 0.23
		1050	$ 0.22
		2550	$ 0.21
Newark	Each	1000	$ 0.20
		2500	$ 0.19

Description

General part information

RLB1014 Series

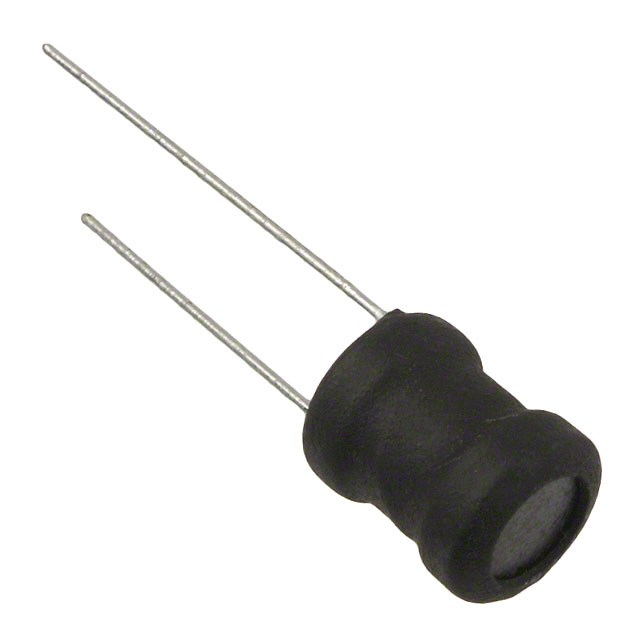

3.3 mH Unshielded Drum Core, Wirewound Inductor 220 mA 10.5Ohm Max Radial, Vertical Cylinder
