8761 06015000

Active

Belden Inc.

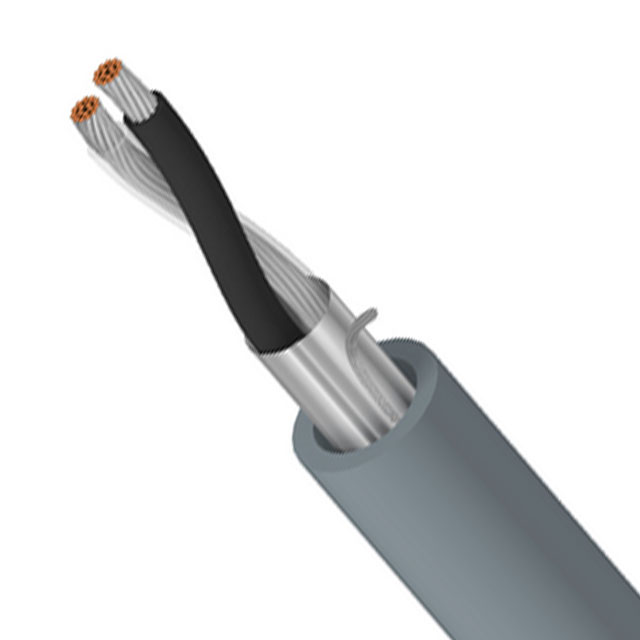

CABLE 2COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8761 06015000

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.45 mm
Jacket (Insulation) Diameter [diameter]	0.175 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Chrome
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket Color	Conductor Insulation	Shield Type	Conductor Material	Shield Material	Wire Gauge	Cable Type	Voltage	Features	Shield Coverage	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 8761 06015000	Chrome	Polyethylene (PE)	Foil	Copper Tinned	Aluminum	22 AWG	Multi-Conductor	300 V	Drain Wire	100 %	Poly-Vinyl Chloride (PVC)	0.025 in	0.635 mm	-20 C	60 °C	7	30 AWG	Audio Control Instrumentation	2	4.45 mm	0.175 in
Belden Inc. 8761 0605000	Chrome	Polyethylene (PE)	Foil	Copper Tinned	Aluminum	22 AWG	Multi-Conductor	300 V	Drain Wire	100 %	Poly-Vinyl Chloride (PVC)	0.025 in	0.635 mm	-20 C	60 °C	7	30 AWG	Audio Control Instrumentation	2	4.45 mm	0.175 in
Belden Inc. 8761 060500	Chrome	Polyethylene (PE)	Foil	Copper Tinned	Aluminum	22 AWG	Multi-Conductor		Drain Wire	100 %	Poly-Vinyl Chloride (PVC)	0.025 in	0.635 mm	-20 C	60 °C	7	30 AWG		2	4.45 mm	0.175 in	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	15000	$ 1.18

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 22 AWG Foil 15000' (4572.0m)
