5307FE 0081000

Active

Belden Inc.

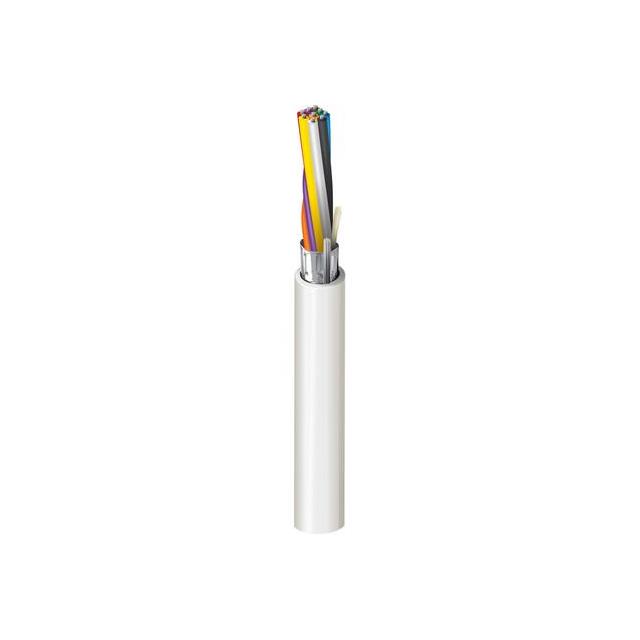

CABLE 9CON 18AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9CON 18AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5307FE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.457 mm
Jacket (Insulation) Thickness	0.018 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	9
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Material	Ratings	Number of Conductors	Shield Coverage	Jacket Color	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Wire Gauge	Length	Length	Conductor Insulation	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Usage	Cable Type
Belden Inc. 5307FE 0081000	Aluminum	UL Style CMR	9	100 %	Gray	Poly-Vinyl Chloride (PVC) Riser	Drain Wire Rip Cord	0.264 in	6.71 mm	26 AWG	7	Foil	18 AWG	1000 ft	304.8 m	Polypropylene (PP)	300 V	0.457 mm	0.018 in	Copper Bare	Security Sound	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.80

General part information

9 Conductor Multi-Conductor Cable Gray 18 AWG Foil 1000.0' (304.8m)
