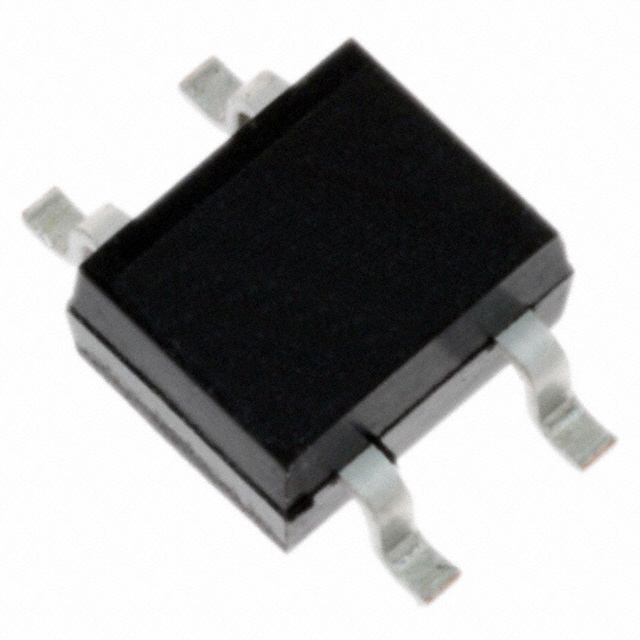

B10S-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 1KV 800MA MBS

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 1KV 800MA MBS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B10S-G	B10S Series

Current - Average Rectified (Io)	800 mA	800 mA
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-BESOP, TO-269AA	4-BESOP, TO-269AA
Supplier Device Package	MBS	MBS
Technology	Standard	Standard
Voltage - Peak Reverse (Max) [Max]	1000 V	1000 V

BRIDGE RECT 1PHASE 1KV 800MA MBS

Part	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Technology	Supplier Device Package	Mounting Type	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]
Comchip Technology B10S-G	5 µA	4-BESOP, TO-269AA	800 mA	1000 V	Standard	MBS	Surface Mount	Single Phase	-55 °C	150 °C
Comchip Technology B10S-HF	5 µA	4-BESOP, TO-269AA	800 mA	1000 V	Standard	MBS	Surface Mount	Single Phase	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Surface Mount MBS

Technical documentation and resources

No documents available
