Technical Specifications
Parameters and characteristics for this part
| Specification | STGIB20M60TS-L |
|---|---|
| Configuration | 3 Phase Inverter |
| Current | 25 A |
| Mounting Type | Through Hole |
| Package / Case | 26-PowerDIP Module |
| Package / Case [x] | 1.146 in |
| Package / Case [y] | 29.1 mm |
| Type | IGBT |
| Voltage | 600 V |
| Voltage - Isolation | 1500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 19.21 | |
| 10 | $ 16.92 | |||
| 156 | $ 14.63 | |||
| 624 | $ 13.26 | |||
Description
General part information

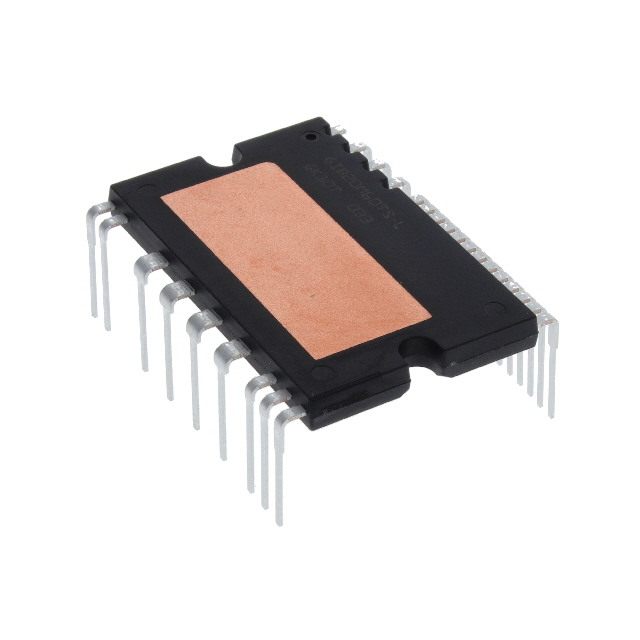

STGIB20M60TS-L Series
This second series of SLLIMM (small low-loss intelligent molded module) provides a compact, high-performance AC motor drive in a simple, rugged design. It combines new ST proprietary control ICs (one LS and one HS driver) with an improved short-circuit rugged trench gate field-stop (TFS) IGBT, making it ideal for motor drives operating up to 20 kHz in hard-switching circuitries.
