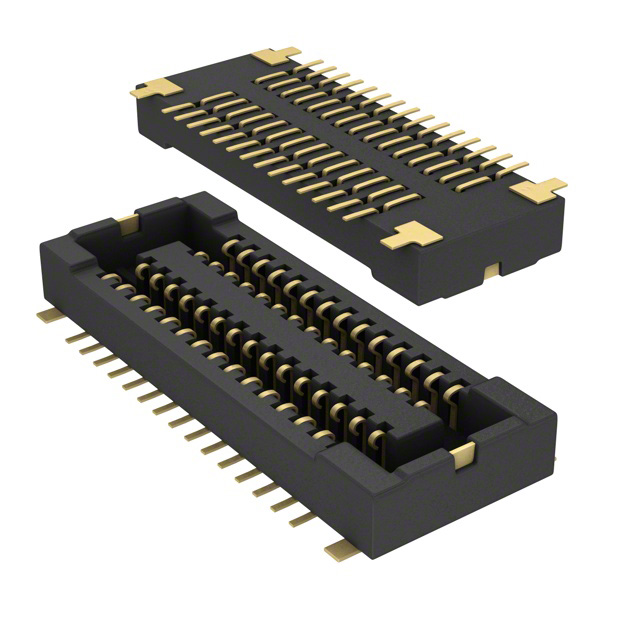

AXT528124

Obsolete

Panasonic Electric Works

CONN SOCKET 28POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 28POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT528124

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.97 mm
Height Above Board	0.038 in
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	28
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Contact Finish	Mounting Type	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Connector Type
Panasonic Electric Works AXT528124	Solder Retention	Gold	Surface Mount	1 mm	0.97 mm	0.038 in	2	28	0.016 in	0.4 mm	Outer Shroud Contacts Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

28 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
