83947AYI-147LF
ObsoleteLOW SKEW,1-TO-9 LVCMOS/LVTTL FANOUT BUFFER
83947AYI-147LF
ObsoleteLOW SKEW,1-TO-9 LVCMOS/LVTTL FANOUT BUFFER
Description
General part information
83947I-147 Series

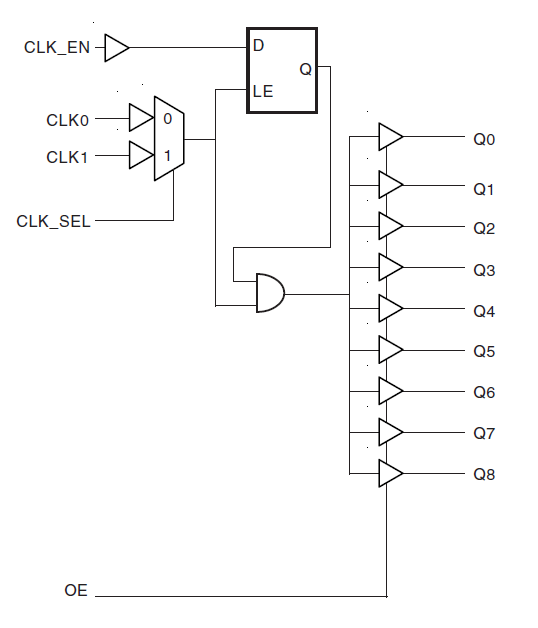

The 83947I-147 is a low skew, 1-to-9 LVCMOS/LVTTL Fanout Buffer. The low impedance LVCMOS/LVTTL outputs are designed to drive 50Ω series or parallel terminated transmission lines. The effective fanout can be increased from 9 to 18 by utilizing the ability of the outputs to drive two series terminated lines. Guaranteed output and part-to-part skew characteristics make the 83947I-147 ideal for high performance, 3.3V or 2.5V single ended applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | 83947AYI-147LF |
|---|---|
| Differential Input | No |
| Differential Output | No |
| Frequency - Max | 250 MHz |
| Input | LVCMOS, LVTTL |
| Input Ratio | 2 |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVTTL, LVCMOS |
| Output Ratio | 9 |
| Package / Case | 32-LQFP |
| Package Length | 7 mm |
| Package Name | 32-TQFP |
| Package Width | 7 mm |
| Type | Multiplexer, Fanout Buffer (Distribution) |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.375 V |
