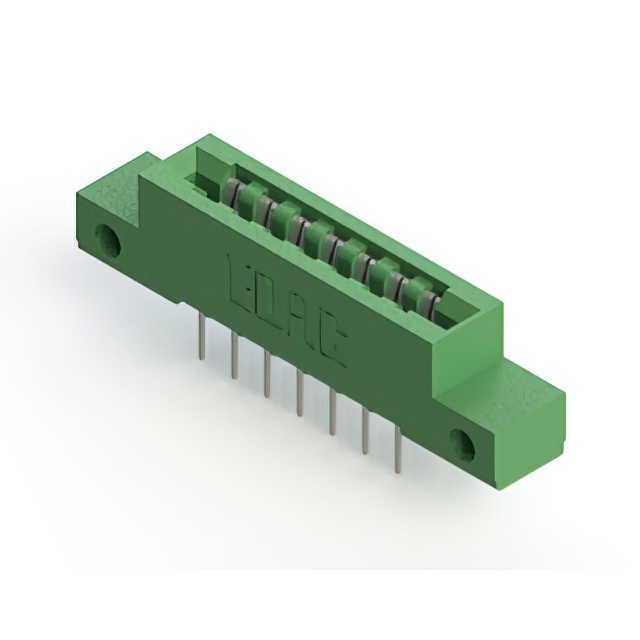

807-014-424-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-014-424-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-014-424-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	14
Number of Positions/Bay/Row [custom]	7
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

807-014 Series

...

Part	Number of Positions/Bay/Row [custom]	Mounting Type	Termination Rows	Number of Rows	Contact Type	Flange Feature	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Features	Color	Termination	Number of Positions	Contact Material	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Read Out	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 807-014-560-207	7	Board Edge Straddle Mount	2	2	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	Gold	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Card Extender	Green	Solder	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge
EDAC Inc. 807-014-427-107	14	Through Hole	1	1	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening	Tin			Female	125 °C	-40 °C		Green	Solder	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Single	Non Specified - Single Edge
EDAC Inc. 807-014-425-102	14	Through Hole	1	1	Semi Bellows	Flush Mount Top Opening Unthreaded	Tin			Female	125 °C	-40 °C		Green	Solder	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Single	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 807-014-520-202	7	Through Hole	2	2	Semi Bellows	Flush Mount Top Opening Unthreaded	Gold	10 Áin	0.25 Ám	Female	125 °C	-40 °C		Green	Solder	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 807-014-560-208	7	Board Edge Straddle Mount	2	2	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Gold	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Card Extender	Green	Solder	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge
EDAC Inc. 807-014-421-108	14	Through Hole	1	2	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Tin			Female	125 °C	-40 °C		Green	Solder	28	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge
EDAC Inc. 807-014-522-208	7	Through Hole	2	2	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening	Gold	10 Áin	0.25 Ám	Female	125 °C	-40 °C		Green	Solder	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge
EDAC Inc. 807-014-500-203	7	Through Hole	2	2	Semi Bellows	Floating Bobbin Flush Mount	Gold	10 Áin	0.25 Ám	Female	125 °C	-40 °C		Green	Solder Eyelet(s)	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge	2.95 mm	0.116 in
EDAC Inc. 807-014-524-212	7	Through Hole	2	2	Semi Bellows	Side Mount Opening Unthreaded	Gold	10 Áin	0.25 Ám	Female	125 °C	-40 °C		Green	Solder	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge			3.25 mm	0.128 in
EDAC Inc. 807-014-424-212	7	Through Hole	2	2	Semi Bellows	Side Mount Opening Unthreaded	Tin			Female	125 °C	-40 °C		Green	Solder	14	Copper Alloy	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge			3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 40.68
Newark	Each	1	$ 48.82
		100	$ 30.82
		250	$ 28.36
		500	$ 26.59
		1000	$ 22.63

Description

General part information

807-014 Series

14 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
