KX14-30K2DE

Active

JAE Electronics

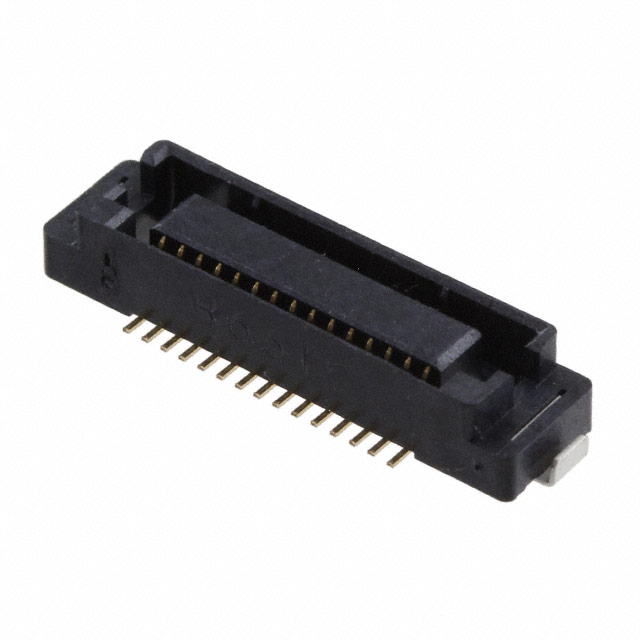

CONN RCPT 30POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX14-30K2DE

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	3.55 mm
Height Above Board	0.14 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Rows	Connector Type	Features	Number of Positions	Contact Finish	Height Above Board	Height Above Board [z]	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board
JAE Electronics KX14-30K8D-E650E	2	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	30	Gold	9.55 mm	0.376 in	Surface Mount	0.8 mm	0.031 in	4 Áin	0.1 Ám
JAE Electronics KX14-30K2D-E1000E	2	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	30	Gold	3.55 mm		Surface Mount	0.8 mm	0.031 in	4 Áin	0.1 Ám	4 mm 5 mm 6 mm	0.14 in
JAE Electronics KX14-30K5D-E1000E	2	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	30	Gold	6.55 mm		Surface Mount	0.8 mm	0.031 in	4 Áin	0.1 Ám	7 mm 8 mm 9 mm	0.258 "
JAE Electronics KX14-30K2DE	2	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	30	Gold	3.55 mm		Surface Mount	0.8 mm	0.031 in	4 Áin	0.1 Ám	4 mm 5 mm 6 mm	0.14 in
JAE Electronics KX14-30K5DE	2	Receptacle Outer Shroud Contacts	Board Guide Solder Retention	30	Gold	6.55 mm		Surface Mount	0.8 mm	0.031 in	4 Áin	0.1 Ám	7 mm 8 mm 9 mm	0.258 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
