EVAL45W19VFLYBP7TOBO1
ActiveTHIS 45W ADAPTER EVALUATION BOARD IS INTENDED TO BE A FORM, FIT AND FUNCTION TEST PLATFORM FOR LOW COST CHARGER AND ADAPTER APPLICATIONS TO SHOW THE OPERATION OF THE 800V COOLMOS™ P7 SJ MOSFET (IPA80R450P7) AS WELL AS THE OVERALL CONTROLLER DESIGN.
Deep-Dive with AI
Search across all available documentation for this part.
EVAL45W19VFLYBP7TOBO1
ActiveTHIS 45W ADAPTER EVALUATION BOARD IS INTENDED TO BE A FORM, FIT AND FUNCTION TEST PLATFORM FOR LOW COST CHARGER AND ADAPTER APPLICATIONS TO SHOW THE OPERATION OF THE 800V COOLMOS™ P7 SJ MOSFET (IPA80R450P7) AS WELL AS THE OVERALL CONTROLLER DESIGN.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL45W19VFLYBP7TOBO1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 2.4 A |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 45 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ICE2QS03G |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVAL45 Series

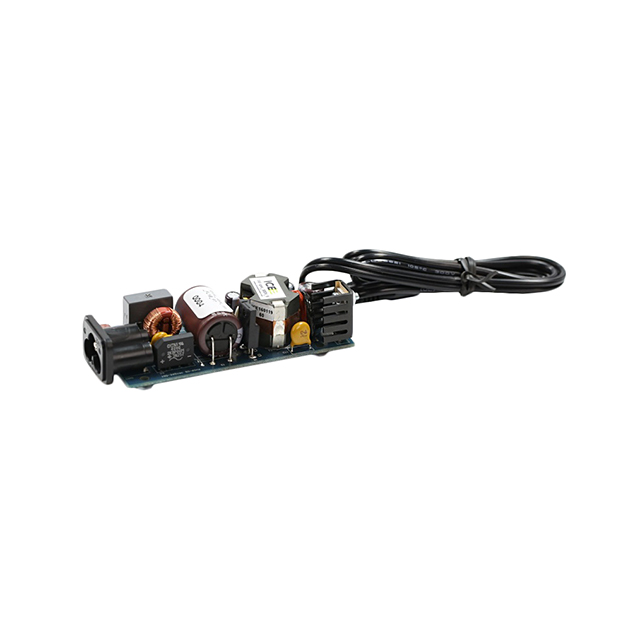

This 45W adapter evaluation board is intended to be a form, fit and function test platform for low costchargerandadapterapplications to show the operation of the800V CoolMOS™ P7SJ MOSFET (IPA80R450P7) as well as the overall controller design. The evaluation board is designed around the Infineonquasi-resonant (QR) flyback controller(ICE2QS03G) for improved switching losses which allows higher power density designs and lower radiated and conducted emissions.
