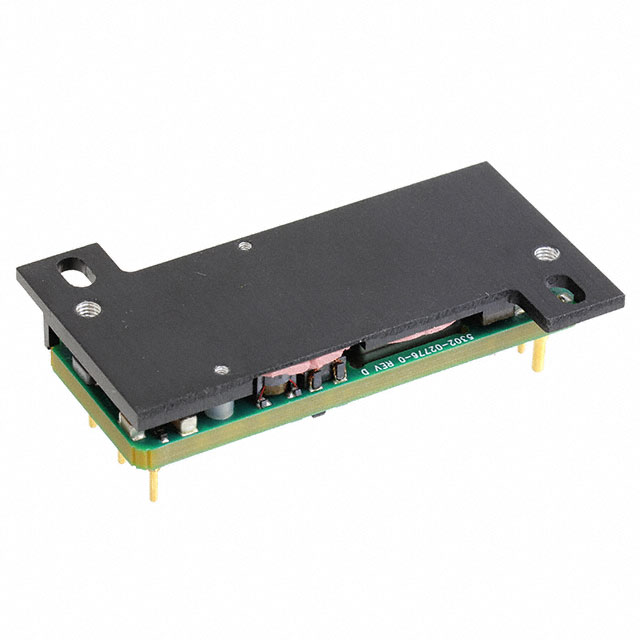

PAE-29/3-D48PB3-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 29.8V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAE-29/3-D48PB3-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 29.8V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PAE-29/3-D48PB3-C | PAE-29 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable, Active Low |
| Current - Output (Max) [Max] | 3.3 A | 3.3 A |
| Efficiency | 92.5 % | 92.5 % |
| Features | OVP, Remote On/Off, SCP, OTP, UVLO | OVP, Remote On/Off, SCP, OTP, UVLO, OCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 100 °C | 85 - 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module, 1/8 Brick | 9-DIP Module, 1/8 Brick, 8 Leads |
| Power (Watts) | 100 W | 100 W |
| Size / Dimension | - | 0.49 in |
| Size / Dimension | - | 2.3 " |
| Size / Dimension | - | 1.45 in |
| Size / Dimension [x] | 2.32 in | 2.32 in |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [y] | 22.9 mm | 22.9 - 36.8 mm |
| Size / Dimension [y] | 0.92 " | 0.92 " |
| Size / Dimension [z] | 12.4 mm | 11.1 - 12.5 mm |
| Size / Dimension [z] | 0.49 in | 0.44 - 0.49 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 29.8 V | 29.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
PAE-29 Series
DC DC CONVERTER 29.8V 100W
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Applications | Power (Watts) | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Efficiency | Voltage - Input (Min) [Min] | Type | Voltage - Input (Max) [Max] | Voltage - Isolation | Voltage - Output 1 | Features | Current - Output (Max) [Max] | Mounting Type | Control Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. PAE-29/3-D48PB3-C | 22.9 mm | 2.32 in | 0.92 " | 58.4 mm | 12.4 mm | 0.49 in | ITE (Commercial) | 100 W | 1 | 100 °C | -40 °C | 1/8 Brick, 9-DIP Module | 92.5 % | 36 V | Isolated Module | 75 V | 1.5 kV | 29.8 V | OTP, OVP, Remote On/Off, SCP, UVLO | 3.3 A | Through Hole | Active High, Enable | |||
Murata Power Solutions Inc. PAE-29/3-D48NB3-C | 22.9 mm | 2.32 in | 0.92 " | 58.4 mm | 12.4 mm | 0.49 in | ITE (Commercial) | 100 W | 1 | 100 °C | -40 °C | 1/8 Brick, 9-DIP Module | 92.5 % | 36 V | Isolated Module | 75 V | 1.5 kV | 29.8 V | OTP, OVP, Remote On/Off, SCP, UVLO | 3.3 A | Through Hole | Active Low, Enable | |||
Murata Power Solutions Inc. PAE-29/3-D48N-C | 22.9 mm | 2.32 in | 0.92 " | 58.4 mm | 11.1 mm | 0.44 " | ITE (Commercial) | 100 W | 1 | 85 °C | -40 °C | 1/8 Brick, 8 Leads, 9-DIP Module | 92.5 % | 36 V | Isolated Module | 75 V | 1.5 kV | 29.8 V | OTP, OVP, Remote On/Off, SCP, UVLO | 3.3 A | Through Hole | Active Low, Enable | |||
Murata Power Solutions Inc. PAE-29/3-D48P-C | 22.9 mm | 2.32 in | 0.92 " | 58.4 mm | 11.1 mm | 0.44 " | ITE (Commercial) | 100 W | 1 | 85 °C | -40 °C | 1/8 Brick, 8 Leads, 9-DIP Module | 92.5 % | 36 V | Isolated Module | 75 V | 1.5 kV | 29.8 V | OTP, OVP, Remote On/Off, SCP, UVLO | 3.3 A | Through Hole | Active High, Enable | |||
Murata Power Solutions Inc. PAE-29/3-D48NB-C | 36.8 mm | 58.4 mm | 12.5 mm | ITE (Commercial) | 100 W | 1 | 100 °C | -40 °C | 1/8 Brick, 9-DIP Module | 92.5 % | 36 V | Isolated Module | 75 V | 1.5 kV | 29.8 V | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 3.3 A | Through Hole | Active Low, Enable | 0.49 in | 2.3 " | 1.45 in |
Description
General part information
PAE-29 Series
Isolated Module DC DC Converter 1 Output 29.8V 3.3A 36V - 75V Input
