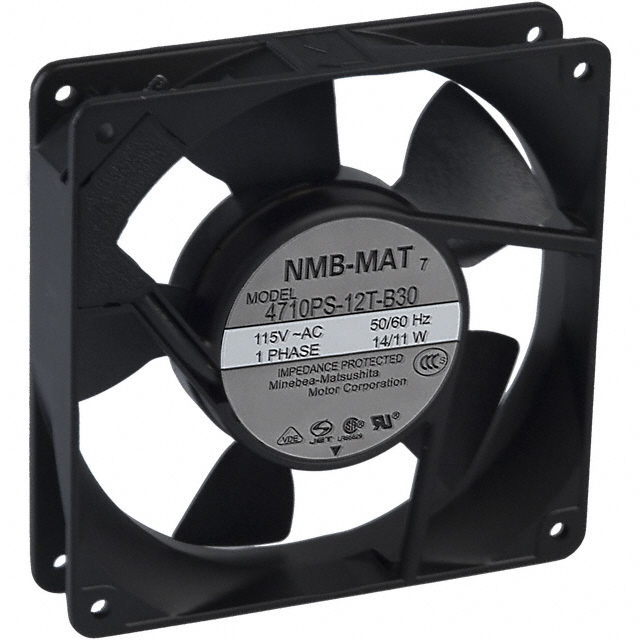

4710PS-12T-B30-A00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 119X25.5MM 115VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
4710PS-12T-B30-A00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 119X25.5MM 115VAC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4710PS-12T-B30-A00 |
|---|---|
| Air Flow | 1.98 mł/min |
| Air Flow | 70.6 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Polycarbonate (PC), Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Noise | 38 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 11 W |
| RPM | 2700 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 362.87 g |
| Weight | 0.8 lb |
| Width [x] | 25.5 mm |
4710PS Series
| Part | Approval Agency | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Lifetime @ Temp. | Noise | Static Pressure | Static Pressure | Weight | Weight | Size / Dimension [y] | Size / Dimension [x] | Bearing Type | Power (Watts) | Termination | Fan Type | Width [x] | Air Flow | Air Flow | Voltage - Rated | Material - Frame | Current Rating (Amps) | RPM | Material - Blade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 38 dB(A) | 40 Pa | 0.16 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 11 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.98 mł/min | 70.6 CFM | 230 VAC | Aluminum | 0.09 A | 2700 RPM | Fiberglass Reinforced Polycarbonate (PC) |
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 38 dB(A) | 41.1 Pa | 0.165 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 11 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.98 mł/min | 70.6 CFM | 220 VAC | Aluminum | 2700 RPM | Fiberglass Reinforced Polycarbonate (PC) | |
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 21.5 Pa | 0.086 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 7 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.48 mł/min | 53 CFM | 100 VAC | Aluminum | 100 mA | 2100 RPM | Fiberglass Reinforced Polycarbonate (PC) | |
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 21.5 Pa | 0.086 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 8 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.48 mł/min | 53 CFM | 220 VAC | Aluminum | 50 mA | 2100 RPM | Fiberglass Reinforced Polycarbonate (PC) | |
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 38 dB(A) | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 11 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.98 mł/min | 70.6 CFM | 115 VAC | Aluminum | 2700 RPM | Fiberglass Reinforced Polycarbonate (PC) | |||
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 38 dB(A) | 41.1 Pa | 0.165 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 11 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.98 mł/min | 70.6 CFM | 200 VAC | Aluminum | 0.09 A | 2700 RPM | Fiberglass Reinforced Polycarbonate (PC) |
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 21.5 Pa | 0.086 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 8 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.48 mł/min | 53 CFM | 200 VAC | Aluminum | 60 mA | 2000 RPM | Fiberglass Reinforced Polycarbonate (PC) | |
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 21.5 Pa | 0.086 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 7 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.48 mł/min | 53 CFM | 115 VAC | Aluminum | 0.09 A | 2000 RPM | Fiberglass Reinforced Polycarbonate (PC) | |
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 21.5 Pa | 0.086 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 8 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.48 mł/min | 53 CFM | 240 VAC | Aluminum | 50 mA | 2100 RPM | Fiberglass Reinforced Polycarbonate (PC) | |
NMB TECHNOLOGIES | CE CSA UL VDE | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 38 dB(A) | 40 Pa | 0.16 in H2O | 362.87 g | 0.8 lb | 119 mm | 119 mm | Ball | 11 W | 2 Terminals | Tubeaxial | 25.5 mm | 1.98 mł/min | 70.6 CFM | 230 VAC | Aluminum | 0.09 A | 2700 RPM | Fiberglass Reinforced Polycarbonate (PC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.38 | |
| 10 | $ 14.60 | |||
| 25 | $ 13.95 | |||
| 50 | $ 13.48 | |||
| 100 | $ 13.02 | |||
| 250 | $ 12.43 | |||
Description
General part information
4710PS Series
Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 70.6 CFM (1.98m³/min) 2 Terminals
