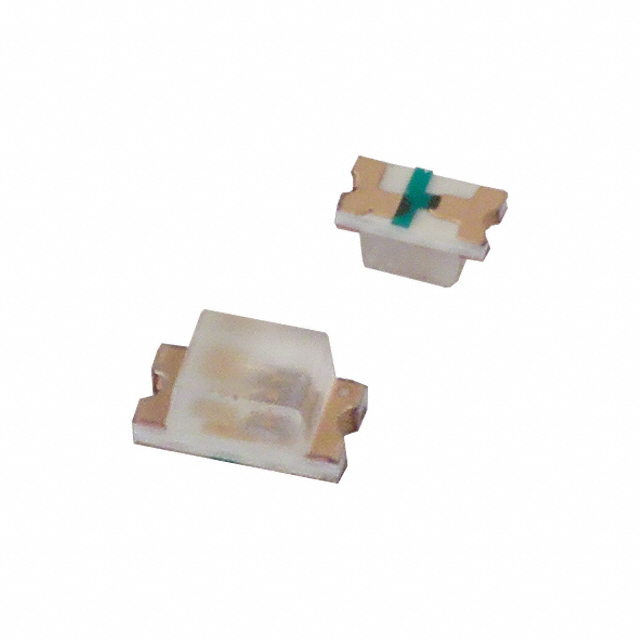

LTST-C190TBKT

Active

Diodes Inc

LED BLUE CLEAR CHIP SMD

Search across all available documentation for this part.

Active

Diodes Inc

LED BLUE CLEAR CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Peak	Height (Max) [Max]	Lens Style	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lens Transparency	Configuration	Lens Color	Color	Current - Test	Package / Case	Millicandela Rating	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Lens Size [y]	Lens Size [x]
Diodes Inc LTST-C190EKT	630 nm	0.9 mm	Rectangle with Flat Top	Surface Mount	130 °	2 V	Clear	Standard	Colorless	Red	10 mA	0603 (1608 Metric)	2 mcd	Chip LED	1.6 mm	0.8 mm	621 nm	0.8 mm	1.1 mm
Diodes Inc LTST-C190TBKT	468 nm	0.9 mm	Rectangle with Flat Top	Surface Mount	130 °	3.3 V	Clear	Standard	Colorless	Blue	20 mA	0603 (1608 Metric)	104 mcd	Chip LED	1.6 mm	0.8 mm	470 nm	0.8 mm	1.1 mm
Diodes Inc LTST-C190KDKT		0.9 mm	Rectangle with Flat Top	Surface Mount	130 °	2.15 V	Clear	Standard	Colorless	Green	20 mA	0603 (1608 Metric)	44.5 mcd		1.6 mm	0.8 mm	572 nm	0.8 mm	1.1 mm
Diodes Inc LTST-C190CKT-EL	660 nm	0.9 mm	Rectangle with Flat Top	Surface Mount	130 °	1.8 V	Clear		Colorless	Red	20 mA	0603 (1608 Metric)	10 mcd	Chip LED	1.6 mm	0.8 mm	638 nm	0.8 mm	1.1 mm
Diodes Inc LTST-C190CKT-CS	660 nm	0.9 mm	Rectangle with Flat Top	Surface Mount	130 °	1.8 V	Clear		Colorless	Red	20 mA	0603 (1608 Metric)	10 mcd	Chip LED	1.6 mm	0.8 mm	638 nm	0.8 mm	1.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 470nm LED Indication - Discrete 3.3V 0603 (1608 Metric)
