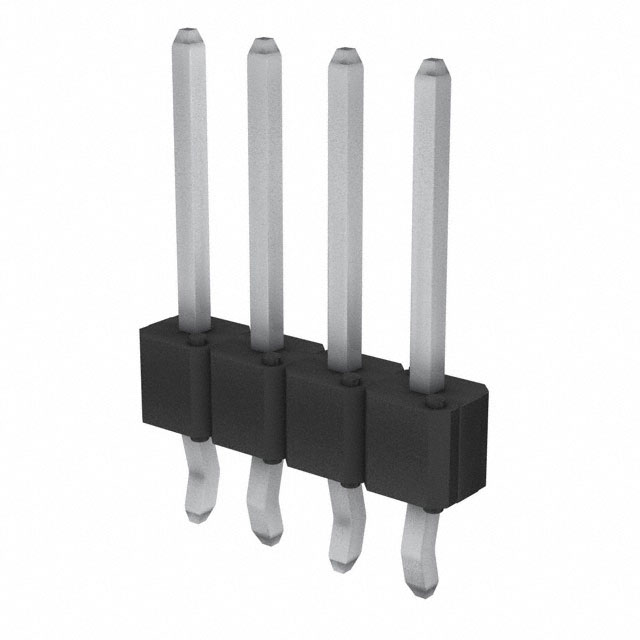

10082627-404HLF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 4POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER VERT 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10082627-404HLF

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.538 "
Overall Contact Length	13.67 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Kinked Pin, Solder

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Overall Contact Length	Overall Contact Length	Shrouding	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Contact Shape	Number of Positions	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Current Rating (Amps)	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Number of Positions Loaded	Mounting Type
Amphenol ICC (FCI) 10082627-404HLF	0.318 "	8.08 mm	Black	0.538 "	13.67 mm	Unshrouded	UL94 V-0	-65 ░C	130 °C	Phosphor Bronze	1	Square	4	Male Pin	0.12 in	3.05 mm	2.54 çm	100 çin	Push-Pull	3 A	Kinked Pin Solder	0.1 in	2.54 mm	Tin	0.1 in	2.54 mm	Breakaway Header	All	Through Hole
