UCBBJR29

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK R/A 75OHM PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK R/A 75OHM PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.78

General part information

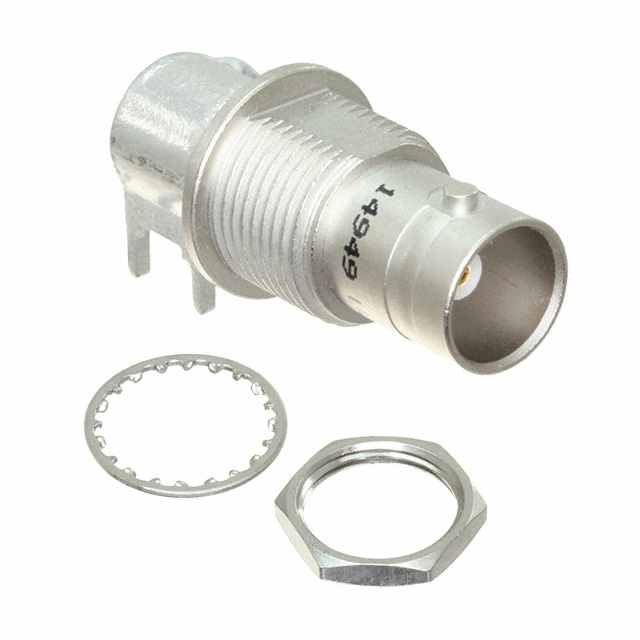

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	UCBBJR29	UCBBJR Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN BNC JACK R/A 75OHM PCB

Part	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Mounting Type	Connector Style	Connector Type	Frequency - Max [Max]	Body Material	Voltage Rating	Housing Color	Body Finish	Number of Ports	Center Contact Plating	Fastening Type	Mounting Feature	Shield Termination	Includes
Cinch Connectivity Solutions Trompeter UCBBJR26	Solder	-65 ░C	165 °C	75 Ohms	Panel Mount, Right Angle, Through Hole	BNC	Female Socket, Jack	4 GHz	Brass	500 V	Silver	Nickel	1	Gold	Bayonet Lock	Bulkhead - Front Side Nut	Solder	Connector, Nut, Washer
Cinch Connectivity Solutions Trompeter UCBBJR29	Solder	-65 ░C	165 °C	75 Ohms	Panel Mount, Right Angle, Through Hole	BNC	Female Socket, Jack	4 GHz	Brass	500 V	Silver	Nickel	1	Gold	Bayonet Lock	Bulkhead - Front Side Nut	Solder	Connector, Nut, Washer
