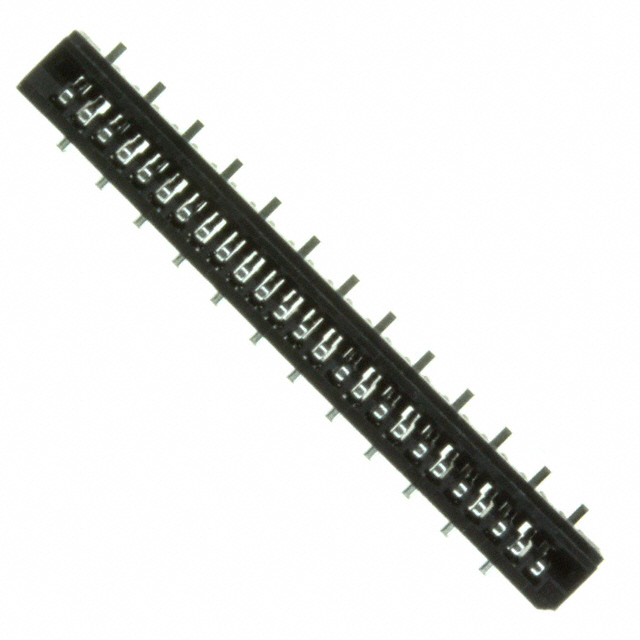

25FMN-BMTTN-A-TF

Active

JST Sales America Inc.

CONN FFC VERT 25POS 1MM SMD

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC VERT 25POS 1MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	25FMN-BMTTN-A-TF

Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	0.201 in
Height Above Board	5.1 mm
Housing Color	Black
Housing Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	50 V

Part	Cable End Type	Features	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Material	Housing Material	Mounting Type	Housing Color	Flat Flex Type	Termination	Voltage Rating	Current Rating (Amps)	Connector/Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Contact Finish
JST Sales America Inc. 25FMN-BMT-A-TF(LF)(SN)	Straight	Low Insertion Force (LIF)	0.039 in	1 mm	0.201 in	5.1 mm	Phosphor Bronze	Polyamide (PA6T) Nylon 6T	Surface Mount	Black	FFC	Solder	50 V	0.5 A	Contacts Vertical - 1 Sided	UL94 V-0	-25 °C	85 °C	0.3 mm	Tin
JST Sales America Inc. 25FMN-BMTTN-A-TF	Straight	Low Insertion Force (LIF)	0.039 in	1 mm	0.201 in	5.1 mm	Phosphor Bronze	Polyamide (PA6T) Nylon 6T	Surface Mount	Black	FFC	Solder	50 V	0.5 A	Contacts Vertical - 1 Sided	UL94 V-0	-25 °C	85 °C	0.3 mm	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.74

General part information

25 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
