408-029-541-122

Active

EDAC Inc.

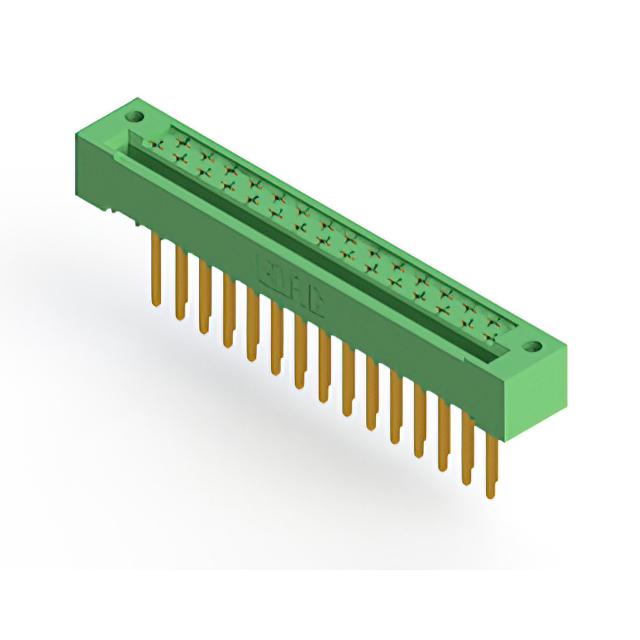

CARD EDGE CONNECTOR, 29 CONTACT(S), 2 ROW(S), HERMAPHRODITIC, 0.2 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

408-029-541-122

Active

EDAC Inc.

CARD EDGE CONNECTOR, 29 CONTACT(S), 2 ROW(S), HERMAPHRODITIC, 0.2 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	408-029-541-122

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	29
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Wire Wrap
Termination Rows	2

408-029 Series

Part	Pitch [x]	Pitch [x]	Contact Material	Contact Finish	Mounting Type	Color	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Gender	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination Rows	Card Type	Termination	Number of Rows
EDAC Inc. 408-029-542-222	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.093 in	2.36 mm	Female	Card Guides	125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Wire Wrap	2
EDAC Inc. 408-029-502-112	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.062 in	1.57 mm	Female		125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Solder	2
EDAC Inc. 408-029-520-122	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.093 in	2.36 mm	Female		125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Solder	2
EDAC Inc. 408-029-541-212	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.062 in	1.57 mm	Female	Card Guides	125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Wire Wrap	2
EDAC Inc. 408-029-541-122	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.093 in	2.36 mm	Female		125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Wire Wrap	2
EDAC Inc. 408-029-525-112	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.062 in	1.57 mm	Female		125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Solder	2
EDAC Inc. 408-029-525-212	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.062 in	1.57 mm	Female	Card Guides	125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Solder	2
EDAC Inc. 408-029-540-212	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.062 in	1.57 mm	Female	Card Guides	125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Wire Wrap	2
EDAC Inc. 408-029-524-222	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.093 in	2.36 mm	Female	Card Guides	125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Solder	2
EDAC Inc. 408-029-540-122	0.2 in	5.08 mm	Copper Alloy	Gold	Panel Mount Through Hole	Green	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	0.093 in	2.36 mm	Female		125 °C	-65 ░C	29	2	Non Specified - Dual Edge	Wire Wrap	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 33.28

Description

General part information

408-029 Series

29 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
