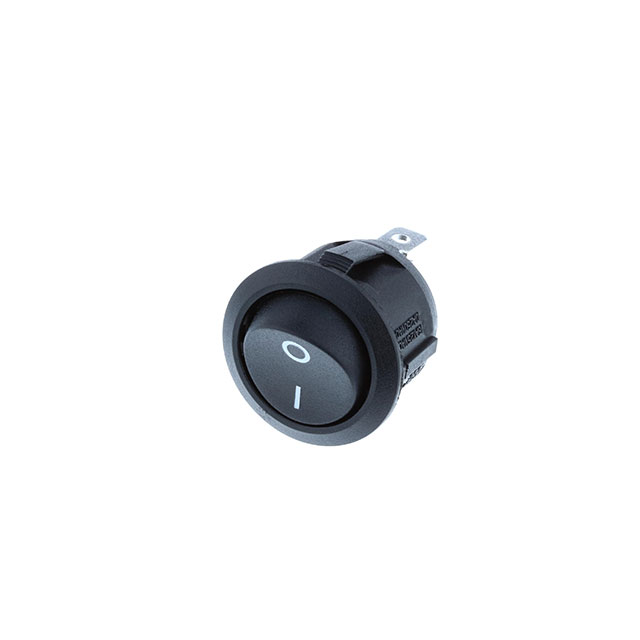

RA1-2A-DC-2-B-1
ActiveSwitch Components
SWITCH ROCKER DPST 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RA1-2A-DC-2-B-1
ActiveSwitch Components
SWITCH ROCKER DPST 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RA1-2A-DC-2-B-1 | RA1-2A Series |
|---|---|---|
| Actuator Marking | O - | Vertical, ON OFF, No Marking, O - |
| Actuator Type | Round | Round |
| Approval Agency | cURus, ENEC | cURus, ENEC |
| Circuit | DPST | DPST |
| Color - Actuator/Cap | Black | Black |
| Current Rating (Amps) | 16 A, 10 A | 10 - 16 A |
| Electrical Life | 6000 Cycles | 6000 Cycles |
| Ingress Protection | - | IP40 |
| Mechanical Life | 10000 Steps | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 - -20 C |
| Panel Cutout Dimensions [diameter] | 20.2 mm | 20.2 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | 28 V | 28 V |
RA1-2A Series
VAC ROUND, DPST OFF-ON, PRINT
| Part | Termination Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Circuit | Actuator Type | Panel Cutout Dimensions [diameter] | Ingress Protection | Color - Actuator/Cap | Actuator Marking | Approval Agency | Switch Function | Voltage Rating - DC | Voltage Rating - AC | Electrical Life | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switch Components RA1-2A-AC-2-B-2 | Quick Connect - 0.187" (4.7mm) | Panel Mount, Snap-In | 85 °C | -20 C | 10 A | DPST | Round | 20.2 mm | IP40 | Black | ON OFF, Vertical | cURus, ENEC | On-Off | ||||
Switch Components RA1-2A-DC-2-B-2 | Quick Connect - 0.187" (4.7mm) | Panel Mount, Snap-In | 85 °C | -25 °C | 10 A, 16 A | DPST | Round | 20.2 mm | Black | ON OFF, Vertical | cURus, ENEC | On-Off | 28 V | 125 V | 6000 Cycles | 10000 Steps | |
Switch Components RA1-2A-DC-2-B | Quick Connect - 0.187" (4.7mm) | Panel Mount, Snap-In | 85 °C | -25 °C | 10 A, 16 A | DPST | Round | 20.2 mm | Black | No Marking | cURus, ENEC | On-Off | 28 V | 125 V | 6000 Cycles | 10000 Steps | |
Switch Components RA1-2A-DC-2-B-1 | Quick Connect - 0.187" (4.7mm) | Panel Mount, Snap-In | 85 °C | -25 °C | 10 A, 16 A | DPST | Round | 20.2 mm | Black | O - | cURus, ENEC | On-Off | 28 V | 125 V | 6000 Cycles | 10000 Steps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.52 | |
| 10 | $ 4.31 | |||
| 25 | $ 4.22 | |||
| 50 | $ 4.12 | |||
| 100 | $ 3.94 | |||
| 250 | $ 3.63 | |||
| 500 | $ 2.78 | |||
| 1000 | $ 2.60 | |||
Description
General part information
RA1-2A Series
Rocker Switch DPST 16 (AC), 10 (DC) 125 V Panel Mount, Snap-In
