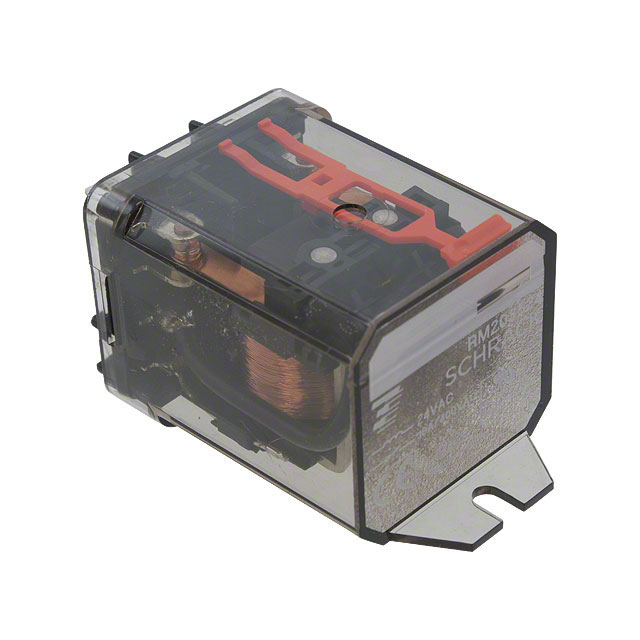

RM203110
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 16A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RM203110
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 16A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RM203110 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 10.9 mA |
| Coil Type | Non Latching |
| Coil Voltage | 110 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 16 A |
| Features | Mechanical Indicator |
| Load - Max Switching | 7040 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 82.5 VDC |
| Must Release Voltage | 11 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 440 VAC |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RM2031 Series
General Purpose Relay DPDT (2 Form C) 110VDC Coil Chassis Mount
