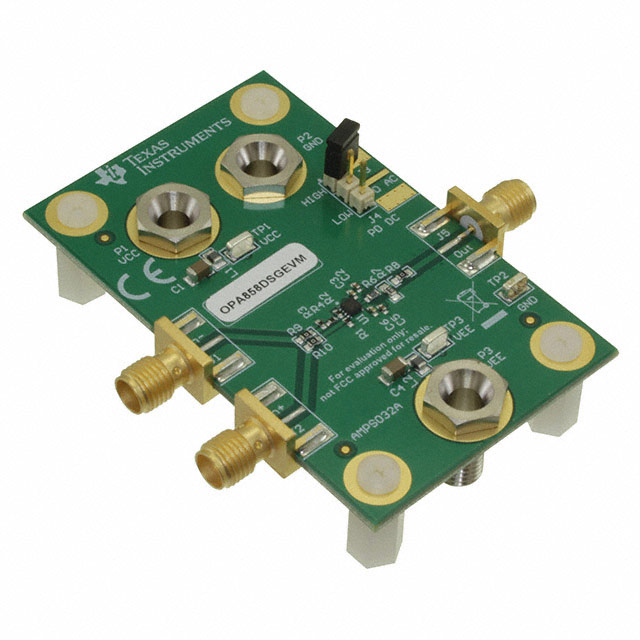

OPA858DSGEVM
ActiveDEVELOPMENT AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
OPA858DSGEVM
ActiveDEVELOPMENT AMPLIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OPA858DSGEVM | OPA858 Series |
|---|---|---|
| Amplifier Type | Transimpedance | J-FET, Transimpedance |
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 - Single | 1 - Single |
| Current - Input Bias | - | 0.4 pA |
| Current - Output / Channel | 30 mA | 30 - 105 mA |
| Current - Supply | - | 21 mA |
| Current - Supply (Main IC) | 19 mA | 19 mA |
| Gain Bandwidth Product | - | 5.5 GHz |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | Single-Ended | Single-Ended |
| Package / Case | - | 8-WFDFN Exposed Pad |
| Slew Rate | 2000 V/µs | 2000 V/µs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-WSON (2x2) |
| Utilized IC / Part | OPA858 | OPA858 |
| Voltage - Input Offset | - | 800 µV |
| Voltage - Supply Span (Max) | - | 5.25 V |
| Voltage - Supply Span (Min) | - | 3.3 V |
| Voltage - Supply, Single/Dual (±) | ±1.6V | ±1.6V |
| Voltage - Supply, Single/Dual (±) [Max] | 2.6 V, 5.2 V | 2.6 - 5.2 V |
| Voltage - Supply, Single/Dual (±) [Min] | 3.2 V | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 118.80 | |
OPA858 Series
5.5 GHz Gain Bandwidth Product, Decompensated Transimpedance Amplifier with FET Input
| Part | Output Type | Voltage - Supply Span (Max) [Max] | Gain Bandwidth Product | Current - Input Bias | Slew Rate | Package / Case | Amplifier Type | Supplier Device Package | Current - Supply | Current - Output / Channel | Mounting Type | Number of Circuits | Voltage - Input Offset | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply Span (Min) [Min] | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) | Voltage - Supply, Single/Dual (±) [Min] | Current - Supply (Main IC) | Supplied Contents | Utilized IC / Part | Channels per IC | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments OPA858IDSGT | Single-Ended | 5.25 V | 5.5 GHz | 0.4 pA | 2000 V/µs | 8-WFDFN Exposed Pad | J-FET | 8-WSON (2x2) | 21 mA | 105 mA | Surface Mount | 1 | 800 µV | 125 °C | -40 °C | 3.3 V | ||||||||
Texas Instruments OPA858DSGEVM | Single-Ended | 2000 V/µs | Transimpedance | 30 mA | 2.6 V, 5.2 V | ±1.6V | 3.2 V | 19 mA | Board(s) | OPA858 | 1 - Single | Fully Populated | ||||||||||||
Texas Instruments OPA858IDSGR | Single-Ended | 5.25 V | 5.5 GHz | 0.4 pA | 2000 V/µs | 8-WFDFN Exposed Pad | J-FET | 8-WSON (2x2) | 21 mA | 105 mA | Surface Mount | 1 | 800 µV | 125 °C | -40 °C | 3.3 V |
Description
General part information
OPA858 Series
The OPA858 is a wideband, low-noise, operational amplifier with CMOS inputs for wideband transimpedance and voltage amplifier applications. When the device is configured as a transimpedance amplifier (TIA), the 5.5-GHz gain bandwidth product (GBWP) enables applications requiring high closed-loop bandwidths at transimpedance gains in the tens to hundreds of kΩs range.
The graph below demonstrates the bandwidth and noise performance of the OPA858 as a function of the photodiode capacitance when the amplifier is configured as a TIA. The total noise is calculated over a bandwidth range extending from DC to the calculated f-3dBfrequency on the left-hand scale. The OPA858 package features a feedback pin (FB) that simplifies the feedback network connection between the input and the output.
The OPA858 is optimized for use in optical Time-of-Flight (ToF) systems like the one shown in the figure below where the OPA858 is used with theTDC7201time-to-digital converter. The OPA858 can be used in high-resolution LIDAR systems with a high-speed analog-to-digital converter (ADC) and a differential output amplifier like theTHS4541orLMH5401to drive the ADC.
