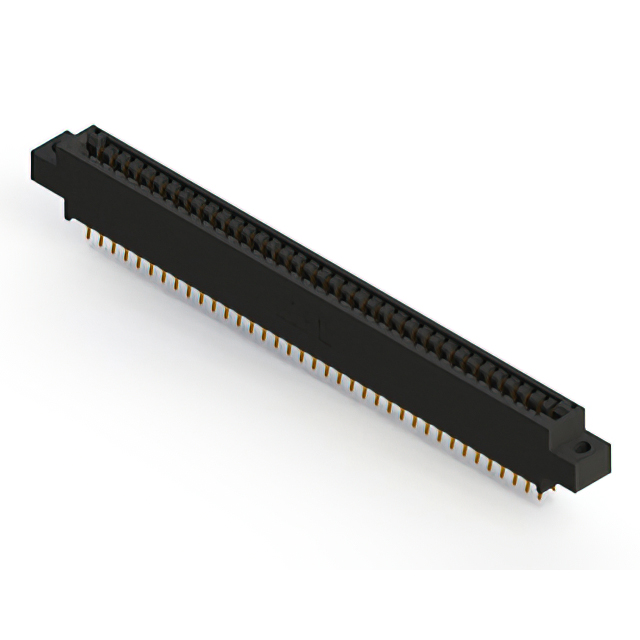

896-074-556-804

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-074-556-804

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-074-556-804	896-074 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	Card Extender	Card Extender
Flange Feature	Top Mount Opening, Unthreaded	Top Mount Opening, 4-40, Threaded Insert, Unthreaded, M3, Side Mount Opening
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Flange Feature [diameter]	0.156 in	0.156 in
Flange Feature [diameter]	3.96 mm	3.96 mm
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount	Board Edge, Straddle Mount, Through Hole, Right Angle
Number of Positions	74	74
Number of Positions/Bay/Row [custom]	37	37
Number of Positions/Bay/Row [custom]	37	37
Number of Positions/Bay/Row [custom]	37	37
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder
Termination Rows	2	2

896-074 Series

CONN EDGE DUAL FMALE 74POS 0.125

Part	Contact Type	Contact Finish	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Termination	Contact Material	Termination Rows	Material - Insulation	Features	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Gender	Flange Feature	Card Type	Read Out	Color	Mounting Type	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 896-074-560-808	Cantilever	Gold	74	125 °C	-40 °C	0.125 in	3.18 mm	Solder	Copper Alloy	2	Polyphenylene Sulfide (PPS)	Card Extender	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	37	37	37	Female	4-40, Threaded Insert, Top Mount Opening	Non Specified - Dual Edge	Dual	Black	Board Edge, Straddle Mount	2
EDAC Inc. 896-074-556-804	Cantilever	Gold	74	125 °C	-40 °C	0.125 in	3.18 mm	Solder	Copper Alloy	2	Polyphenylene Sulfide (PPS)	Card Extender	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	37	37	37	Female	Top Mount Opening, Unthreaded	Non Specified - Dual Edge	Dual	Black	Board Edge, Straddle Mount	2	0.156 in	3.96 mm
EDAC Inc. 896-074-558-804	Cantilever	Gold	74	125 °C	-40 °C	0.125 in	3.18 mm	Solder	Copper Alloy	2	Polyphenylene Sulfide (PPS)		10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	37	37	37	Female	Top Mount Opening, Unthreaded	Non Specified - Dual Edge	Dual	Black	Through Hole, Right Angle	2	0.156 in	3.96 mm
EDAC Inc. 896-074-560-807	Cantilever	Gold	74	125 °C	-40 °C	0.125 in	3.18 mm	Solder	Copper Alloy	2	Polyphenylene Sulfide (PPS)	Card Extender	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	37	37	37	Female	M3, Threaded Insert, Top Mount Opening	Non Specified - Dual Edge	Dual	Black	Board Edge, Straddle Mount	2
EDAC Inc. 896-074-560-812	Cantilever	Gold	74	125 °C	-40 °C	0.125 in	3.18 mm	Solder	Copper Alloy	2	Polyphenylene Sulfide (PPS)	Card Extender	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	37	37	37	Female	Side Mount Opening, Unthreaded	Non Specified - Dual Edge	Dual	Black	Board Edge, Straddle Mount	2			3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 78.52

Description

General part information

896-074 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
