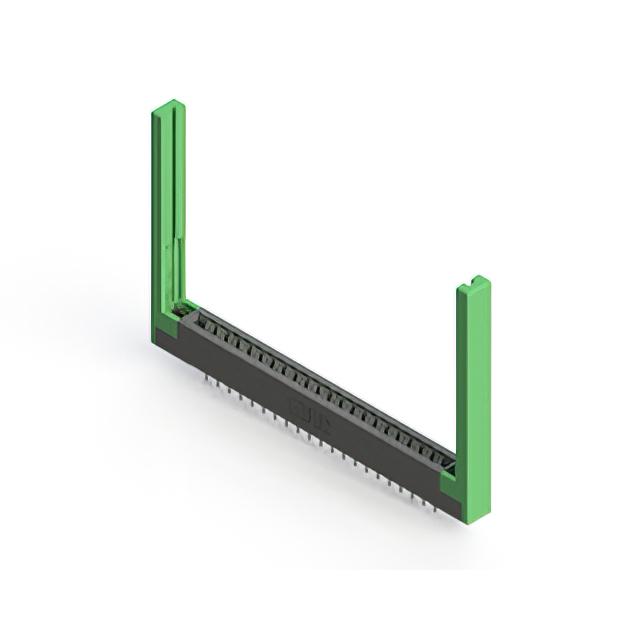

356-021-420-168

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

356-021-420-168

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-021-420-168

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	42
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

356-021 Series

Part	Features	Read Out	Number of Positions	Mounting Type	Termination	Card Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Pitch [x]	Pitch [x]	Contact Material	Flange Feature	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Termination Rows	Color	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 356-021-521-178	Card Guides	Dual	42	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	0.156 in	3.96 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Cantilever	1	Black
EDAC Inc. 356-021-420-112		Dual	42	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	0.156 in	3.96 mm	Copper Alloy	Flush Mount Side Opening Unthreaded	2			Cantilever	1	Black	3.25 mm	0.128 "
EDAC Inc. 356-021-420-168	Card Guides	Dual	42	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	0.156 in	3.96 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2			Cantilever	1	Black
EDAC Inc. 356-021-400-101		Dual	42	Free Hanging (In-Line)	Solder Eyelet(s)	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	0.156 in	3.96 mm	Copper Alloy		2			Cantilever	1	Black
EDAC Inc. 356-021-400-108		Dual	42		Solder Eyelet(s)	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	0.156 in	3.96 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2			Cantilever	1	Black
EDAC Inc. 356-021-420-108		Dual	42	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	0.156 in	3.96 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2			Cantilever	1	Black
EDAC Inc. 356-021-520-168	Card Guides	Dual	42	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	0.156 in	3.96 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Cantilever	1	Black
EDAC Inc. 356-021-521-168	Card Guides	Dual	42	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	0.156 in	3.96 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Cantilever	1	Black
EDAC Inc. 356-021-500-168	Card Guides	Dual	42		Solder Eyelet(s)	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	0.156 in	3.96 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Cantilever	1	Black
EDAC Inc. 356-021-500-108		Dual	42		Solder Eyelet(s)	Non Specified - Dual Edge	Female	-40 °C	105 ░C	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	0.156 in	3.96 mm	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Cantilever	1	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.67
Newark	Each	1	$ 17.41
		100	$ 11.16
		250	$ 9.37
		500	$ 8.32
		1000	$ 7.05

Description

General part information

356-021 Series

42 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
