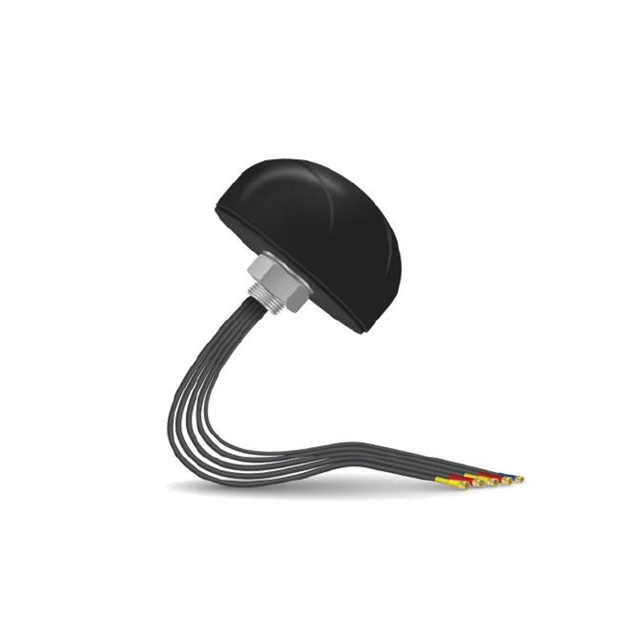

X1005324-LWS5SX10A2

Active

KYOCERA AVX

ANTENNA GNSS / LTE MIMO / WIFI

Search across all available documentation for this part.

Active

KYOCERA AVX

ANTENNA GNSS / LTE MIMO / WIFI

Technical Specifications

Parameters and characteristics for this part

ANTENNA GNSS / LTE MIMO / WIFI

Part	Gain	Number of Bands	Applications	Termination	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	RF Family/Standard	Antenna Type	Frequency Group	Mounting Type	VSWR	Features	Ingress Protection	Frequency Range [Max]	Frequency Range [Min]
KYOCERA AVX X1005324-LWS5SX10A2	3 dBi, 3.5 dBi, 3.8 dBi, 4.1 dBi, 4.6 dBi, 4.9 dBi, 6.6 dBi	8	GLONASS, GNSS, GPS, LTE, Wi-Fi	RP-SMA Male (1), SMA Male (2)	2.5 in	63.5 mm	1.561 GHz, 1.575 GHz, 1.602 GHz, 1.94 GHz, 2.45 GHz, 2.495 GHz, 5.4875 GHz, 829 MHz	Cellular, Navigation, WiFi	Dome	Wide Band	Adhesive	1.8, 2, 3.5	Cable - 1m, LNA	IPX7	2.17 GHz, 2.5 GHz, 2.69 GHz, 5.825 GHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.4 GHz, 5.15 GHz, 698 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	32	$ 160.28

General part information

RF ANTENNA GLONASS, GPS, GNSS, LTE, Wi-Fi Dome SMA Male (2), RP-SMA Male (1) Adhesive
