51-151.022F

Active

EAO

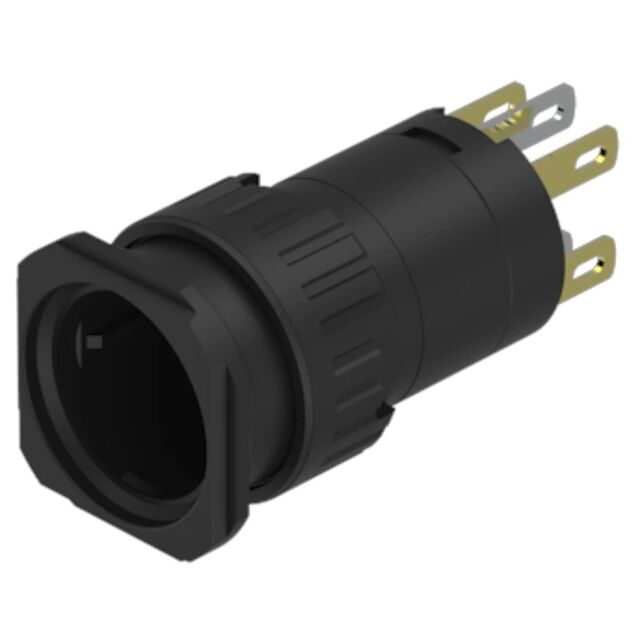

ILLUMINATED PUSHBUTTON FLUSH MOUNTING NEUTRAL MOM SA 1NC+1NO ST/PT GOLD/SILVER

Search across all available documentation for this part.

Active

EAO

ILLUMINATED PUSHBUTTON FLUSH MOUNTING NEUTRAL MOM SA 1NC+1NO ST/PT GOLD/SILVER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-151.022F	51-151 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Square, Button (Not Included)	Square, Button (Not Included)
Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles	1000000 - 2000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions	-	16 mm
Panel Cutout Dimensions [x]	21.2 mm	21.2 mm
Panel Cutout Dimensions [y]	21.2 mm	21.2 mm
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

SWITCH PB DPST-NO/NC 5A 250V

Part	Ingress Protection	Actuator Type	Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Function	Actuator Marking	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Termination Style	Termination Style
EAO 51-151.012	IP65 - Dust Tight, Water Resistant	Square, Button (Not Included)	Standard	250 V	55 °C	-25 °C	1000000 Cycles	Off-Mom, On-Mom	No Marking	16 mm	5 A	DPST-NO/NC	Panel Mount, Front
EAO 51-151.022F	IP65 - Dust Tight, Water Resistant	Square, Button (Not Included)	Standard	250 V	55 °C	-25 °C	2000000 Cycles	Off-Mom, On-Mom	No Marking		5 A	DPST-NO/NC	Panel Mount, Front	21.2 mm	21.2 mm	0.11 in	Quick Connect, Solder	2.8 mm
EAO 51-151.022	IP65 - Dust Tight, Water Resistant	Square, Button (Not Included)	Standard	250 V	55 °C	-25 °C	2000000 Cycles	Off-Mom, On-Mom	No Marking	16 mm	5 A	DPST-NO/NC	Panel Mount, Front			0.11 in	Quick Connect, Solder	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
