1411157

Active

Phoenix Contact

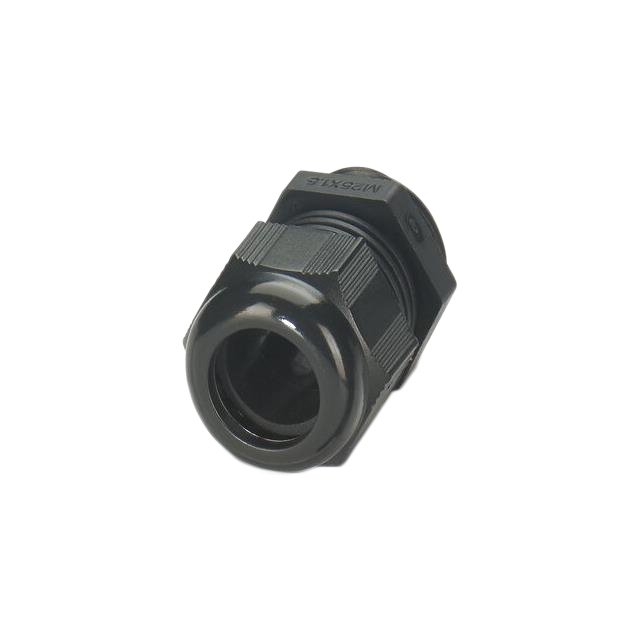

CABLE ACCESSORIES CABLE GLAND POLYAMIDE BLACK

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE ACCESSORIES CABLE GLAND POLYAMIDE BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411157	G-INS-N1/2 Series

Color	Black	Black, Gray
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max]	14 mm	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	10 mm
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	1/2" NPT	1/2" NPT
Type	Cable Gland	Cable Gland

CABLE ACCESSORIES CABLE GLAND POLYAMIDE BLACK

Part	Thread Size	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type
Phoenix Contact 1411157	1/2" NPT	IP66/IP68	Seal	14 mm	0.551 "	Polyamide (PA), Nylon	0.591 in	15 mm	0.394 in	10 mm	Black	100 °C	-40 °C	Cable Gland
Phoenix Contact 1411153	1/2" NPT	IP66/IP68	Seal	14 mm	0.551 "	Polyamide (PA), Nylon	0.591 in	15 mm	0.394 in	10 mm	Gray	100 °C	-40 °C	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.49

General part information

Cable Gland Polyamide (PA), Nylon 1/2" NPT Black
