1411153

Active

Phoenix Contact

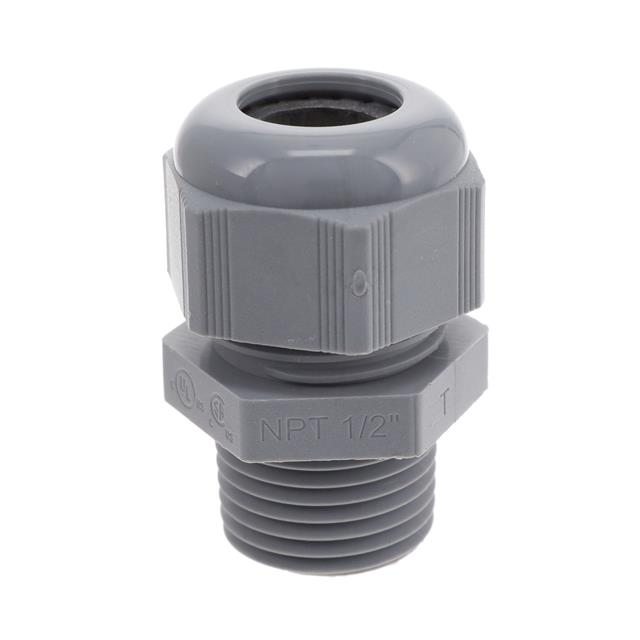

CABLE GLAND 10-14MM 1/2" NPT

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-14MM 1/2" NPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411153	G-INS-N1/2 Series

Color	Gray	Black, Gray
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max]	14 mm	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	10 mm
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	1/2" NPT	1/2" NPT
Type	Cable Gland	Cable Gland

CABLE ACCESSORIES CABLE GLAND POLYAMIDE BLACK

Part	Thread Size	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type
Phoenix Contact 1411157	1/2" NPT	IP66/IP68	Seal	14 mm	0.551 "	Polyamide (PA), Nylon	0.591 in	15 mm	0.394 in	10 mm	Black	100 °C	-40 °C	Cable Gland
Phoenix Contact 1411153	1/2" NPT	IP66/IP68	Seal	14 mm	0.551 "	Polyamide (PA), Nylon	0.591 in	15 mm	0.394 in	10 mm	Gray	100 °C	-40 °C	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.49

General part information

Cable Gland Polyamide (PA), Nylon 1/2" NPT Gray

Technical documentation and resources
