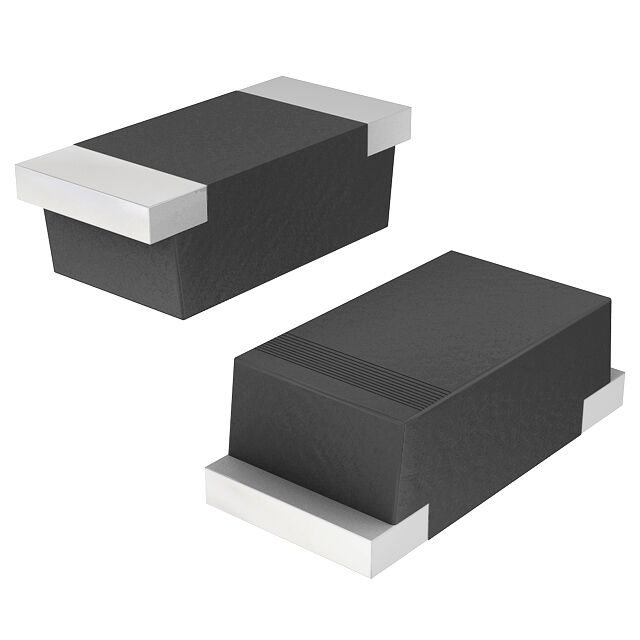

CPDH12V0UB-HF

Active

Comchip Technology

TVS DIODE 12VWM 26VC SOD523

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 12VWM 26VC SOD523

Technical Specifications

Parameters and characteristics for this part

Specification	CPDH12V0UB-HF

Applications	General Purpose
Capacitance @ Frequency	45 pF
Current - Peak Pulse (10/1000µs)	4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-79, SOD-523
Power - Peak Pulse	104 W
Power Line Protection	False
Supplier Device Package	SOD-523
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	14.1 V
Voltage - Clamping (Max) @ Ipp [Max]	26 V
Voltage - Reverse Standoff (Typ)	12 V

TVS DIODE 12VWM 26VC SOD523

Part	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Type	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Power Line Protection	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]
Comchip Technology CPDH12V0UB-HF	26 V	SC-79, SOD-523	Zener	Surface Mount	General Purpose	-55 °C	150 °C		45 pF	12 V	104 W	SOD-523	14.1 V	4 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26V Clamp 4A Ipp Tvs Diode Surface Mount SOD-523

Technical documentation and resources

No documents available
