25362 BK199

Active

ALPHA WIRE

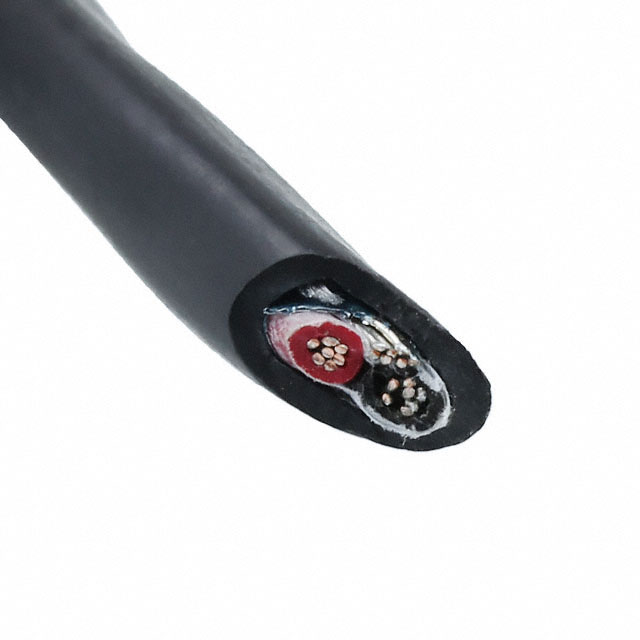

CABLE 2COND 16AWG BLK SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 16AWG BLK SHLD 1000'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.13

General part information

2 Conductor Multi-Conductor Cable Black 16 AWG Foil 1000.0' (304.8m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	25362 BK199	25362 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Features	Rip Cord, Biological Compatibility, Drain Wire	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	6.45 mm	6.45 mm
Jacket (Insulation) Diameter [diameter]	0.254 in	0.254 in
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black, Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Number of Conductors	2	2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 2COND 16AWG BLK SHLD 1000'

Part	Wire Gauge	Ratings	Shield Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Material	Shield Coverage	Length	Length	Features	Jacket Color
ALPHA WIRE 25362 BK199	16 AWG	ISO 10993, UL Style 20668	Aluminum	2	6.45 mm	0.254 in	Foil	Multi-Conductor	-30 ░C	90 °C	Copper, Tinned	300 V	19	0.0117 in	Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	100 %	1000 ft	304.8 m	Biological Compatibility, Drain Wire, Rip Cord	Black
ALPHA WIRE 25362 SL199	16 AWG	ISO 10993, UL Style 20668	Aluminum	2	6.45 mm	0.254 in	Foil	Multi-Conductor	-30 ░C	90 °C	Copper, Tinned	300 V	19	0.0117 in	Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	100 %	1000 ft	304.8 m	Biological Compatibility, Drain Wire, Rip Cord	Slate
