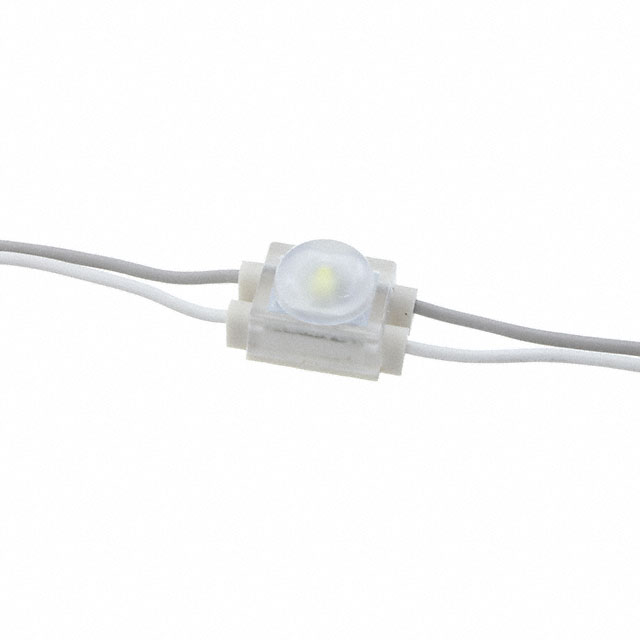

ZM-1610-CW

Obsolete

JKL Components Corp.

LED MOD COOL WHT ROUND 6000K

Search across all available documentation for this part.

Obsolete

JKL Components Corp.

LED MOD COOL WHT ROUND 6000K

Technical Specifications

Parameters and characteristics for this part

Specification	ZM-1610-CW

CCT (K)	6000 K
Color	Cool, White
Configuration	Plug and Play, Round
Current - Max [Max]	30 mA
Current - Test	30 mA
Features	IP67
Height [z]	9.78 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	92 lm/W
Luminous Flux @ Current/Temperature	33 lm
Size / Dimension [x]	12 mm
Size / Dimension [y]	10 mm
Type	LED Module
Viewing Angle	160 °
Voltage - Forward (Vf) (Typ)	12 V

Part	Type	Viewing Angle	Lens Type	Current - Max [Max]	Luminous Flux @ Current/Temperature	CCT (K)	Current - Test	Lumens/Watt @ Current - Test	Configuration	Color	Features	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)
JKL Components Corp. ZM-1610-CW	LED Module	160 °	Domed	30 mA	33 lm	6000 K	30 mA	92 lm/W	Plug and Play Round	Cool White	IP67	9.78 mm	12 mm	10 mm	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Round, Plug and Play
