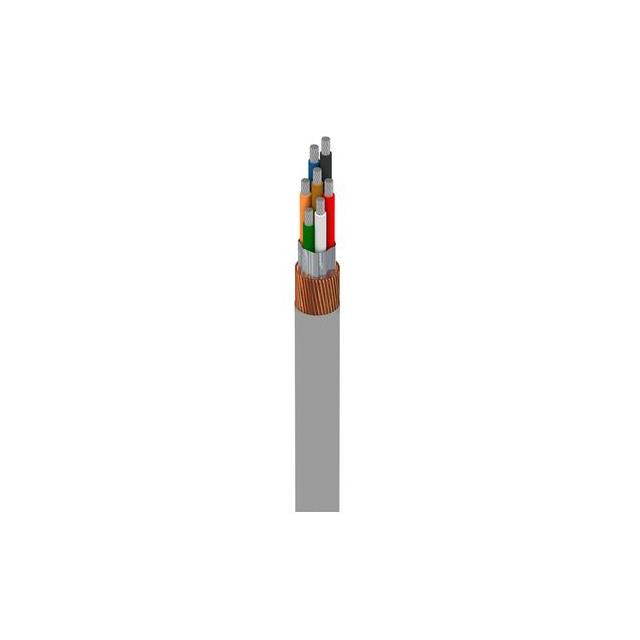

76107WS 008100

Active

Belden Inc.

CABLE 7CON 26AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 7CON 26AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	76107WS 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	6.02 mm
Jacket (Insulation) Diameter [diameter]	0.237 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	7
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Spiral
Voltage	300 V
Wire Gauge	26 AWG

Part	Shield Material	Conductor Strand	Jacket Color	Conductor Material	Cable Type	Conductor Insulation	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Voltage	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Number of Conductors	Shield Type	Jacket (Insulation) Material
Belden Inc. 76107WS 008100	Aluminum Copper Tinned	7 Strands 34 AWG	Chrome	Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Oil Resistant	6.02 mm	0.237 in	90 % 100 %	300 V	30.5 m	100 ft	0.04 in	1.016 mm	26 AWG	7	Foil Spiral	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.38

General part information

7 Conductor Multi-Conductor Cable Chrome 26 AWG Foil, Spiral 100.0' (30.5m)
