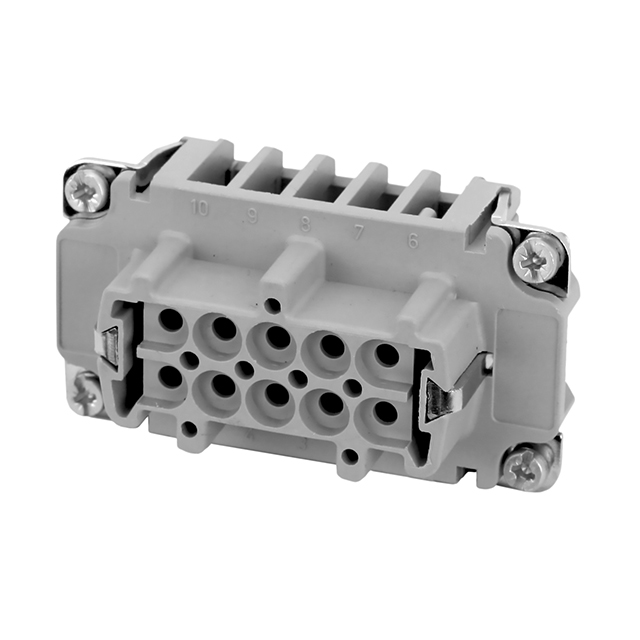

C14610B01050010

Active

Amphenol Tuchel Industrial

INSERT FEMALE 10POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 10POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B01050010

Color	Gray
Connector Type	Insert without Contacts
Contact Type	heavy\|mate®, C146 E, EE
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	600 V

Part	Contact Type	Color	Gender	Current Rating (Amps)	Connector Type	Number of Positions	Termination Style	Size	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Contact Finish	Housing Material	Contact Material
Amphenol Tuchel Industrial C14610B0105001	heavy\|mate® C146 E EE	Gray	Female	10 A	Insert without Contacts	10+Ground	Crimp	E10	125 °C	-40 °C	UL94 V-0	600 V
Amphenol Tuchel Industrial C14610B0100024			Female	14 A		10+Ground	Screw	A10	100 °C	-40 °C	UL94 V-0	250 VDC	Silver	Polybutylene Terephthalate (PBT)	Brass
Amphenol Tuchel Industrial C14610B0108101		Gray	Female			10+Ground	Screw		100 °C	-40 °C	UL94 V-0			Polyamide (PA) Nylon	Iron-Constantan (FE/KO)
Amphenol Tuchel Industrial C14610B0100001	C 16-3	Gray	Female	10 A	Insert without Contacts	10+Ground	Crimp	E10	125 °C	-40 °C	UL94 V-0	600 V
Amphenol Tuchel Industrial C14610B0100021		Gray	Female	10 A		10+Ground	Screw	E10	125 °C	-40 °C	UL94 V-0	600 V	Silver		Brass
Amphenol Tuchel Industrial C14610B01050010	heavy\|mate® C146 E EE	Gray	Female	16 A	Insert without Contacts	10+Ground	Crimp		100 °C	-40 °C	UL94 V-0	600 V		Polycarbonate (PC)
Amphenol Tuchel Industrial C14610B0101021		Gray	Female	10 A		10+Ground	Screw	E10	125 °C	-40 °C	UL94 V-0	600 V	Silver		Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 16.12

General part information

Female Insert without Contacts Gray 10+Ground Position Crimp
