ADT-2583-NF-SMF-02

Active

Cinch Connectivity Solutions Midwest Microwave

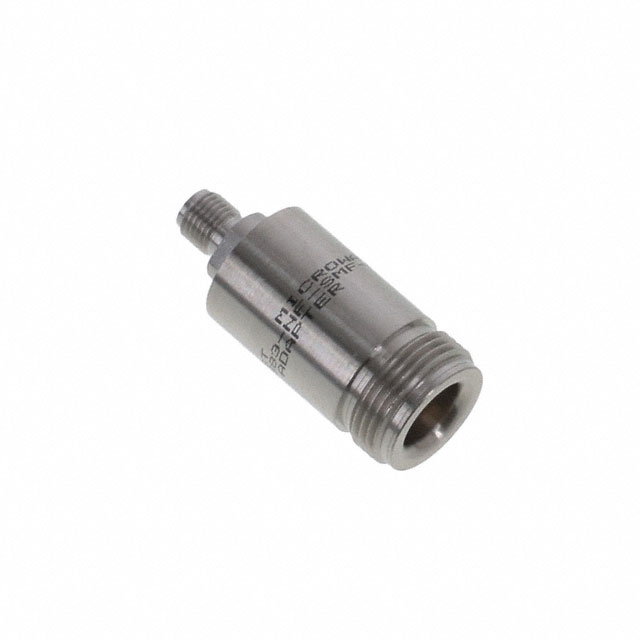

CONN ADAPT N JACK TO SMA JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT N JACK TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ADT-2583-NF-SMF-02

Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT N JACK TO SMA JACK

Part	Conversion Type	Dielectric Material	Frequency - Max [Max]	Center Gender	Mounting Type	Center Contact Material	Convert To (Adapter End)	Center Contact Plating	Style	Impedance	Body Material	Convert From (Adapter End)	Adapter Type
Cinch Connectivity Solutions Midwest Microwave ADT-2583-NF-SMF-02	Between Series	Polytetrafluoroethylene (PTFE)	18 GHz	Female to Female	Free Hanging (In-Line)	Beryllium Copper	Female Socket, SMA Jack	Gold	Straight	50 Ohms	Stainless Steel	Female Socket, N Jack	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
