1005512

Active

Phoenix Contact

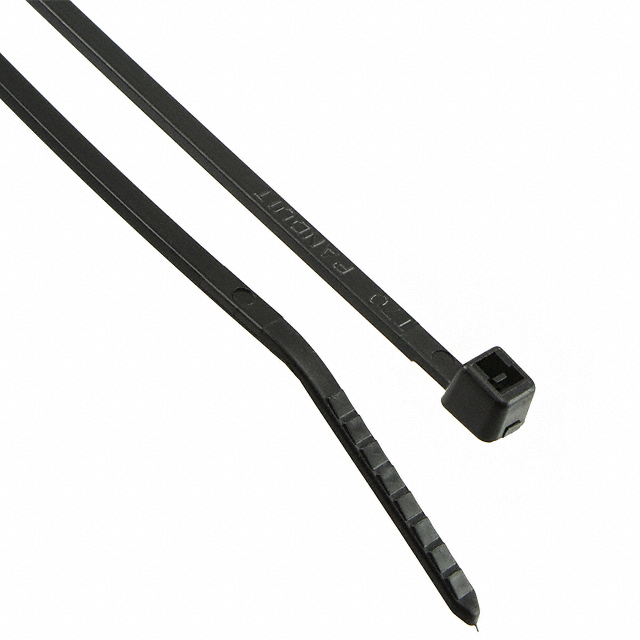

CBL TIE LOCKING BLACK 18LB 3.93"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1005512

Active

Phoenix Contact

CBL TIE LOCKING BLACK 18LB 3.93"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PKB Series

Standard, Locking Black 0.86" (22.00mm) 0.098" (2.50mm) 18 lbs (8.16 kg)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1005512	PKB Series

Bundle Diameter	-	1.38 - 1.97 in
Bundle Diameter	-	35 - 50 mm
Bundle Diameter [diameter]	0.86 in	0.86 - 4.02 in
Bundle Diameter [diameter]	22 mm	22 - 102 mm
Color	Black	Clear, Black
Features	UV Resistant	UV Resistant
Length - Actual	0.328 ft	0.328 - 1.214 ft
Length - Actual	3.93 in	3.93 - 7.87 in
Length - Actual	100 mm	100 - 370 mm
Length - Actual	-	11.42 "
Length - Actual	-	0.951 ft
Length - Actual	-	290 mm
Length - Approximate	4 in	4 - 14.5 in
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	18 lbs	18 - 50 lbs
Tensile Strength	8.16 kg	8.16 - 22.68 kg
Width	-	3.58 mm
Width	-	4.83 mm
Width [x]	0.098 in	0.098 - 0.19 in
Width [x]	2.5 mm	0.141 - 2.5 mm
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

PKB Series

CBL TIE LOCKING CLR 18LBS 3.93"

Part	Length - Actual	Length - Actual	Length - Actual	Material	Mounting Type	Wire/Cable Tie Type	Length - Approximate	Color	Width [x]	Width [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Tensile Strength	Tensile Strength	Features	Bundle Diameter	Bundle Diameter	Width [x]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Width
Phoenix Contact 1005457	0.328 ft	3.93 in	100 mm	Polyamide (PA), Nylon	Free Hanging (In-Line)	Locking, Standard	4 in	Clear	0.098 in	2.5 mm	0.86 in	22 mm	18 lbs	8.16 kg
Phoenix Contact 1005525				Polyamide (PA), Nylon	Free Hanging (In-Line)	Locking, Standard	5.5 in	Black		0.141 in			40 lbs	18.14 kg	UV Resistant	1.38 in	35 mm	3.58 mm
Phoenix Contact 1005499				Polyamide (PA), Nylon	Free Hanging (In-Line)	Locking, Standard	11.5 in	Clear	0.19 in		2.99 in	75.95 mm	50 lbs	22.68 kg					11.42 "	0.951 ft	290 mm	4.83 mm
Phoenix Contact 1005554				Polyamide (PA), Nylon	Free Hanging (In-Line)	Locking, Standard	11.5 in	Black	0.19 in		2.99 in	75.95 mm	50 lbs	22.68 kg	UV Resistant				11.42 "	0.951 ft	290 mm	4.83 mm
Phoenix Contact 1005486	0.656 ft	7.87 "	200 mm	Polyamide (PA), Nylon	Free Hanging (In-Line)	Locking, Standard	7.75 in	Clear	0.098 in	2.5 mm			18 lbs	8.16 kg		1.97 in	50 mm
Phoenix Contact 1005512	0.328 ft	3.93 in	100 mm	Polyamide (PA), Nylon	Free Hanging (In-Line)	Locking, Standard	4 in	Black	0.098 in	2.5 mm	0.86 in	22 mm	18 lbs	8.16 kg	UV Resistant
Phoenix Contact 1005509	1.214 '		370 mm	Polyamide (PA), Nylon	Free Hanging (In-Line)	Locking, Standard	14.5 in	Clear	0.19 in		4.02 in	102 mm	50 lbs	22.68 kg								4.83 mm
Phoenix Contact 1005460				Polyamide (PA), Nylon	Free Hanging (In-Line)	Locking, Standard	5.5 in	Clear		0.141 in			40 lbs	18.14 kg		1.38 in	35 mm	3.58 mm
