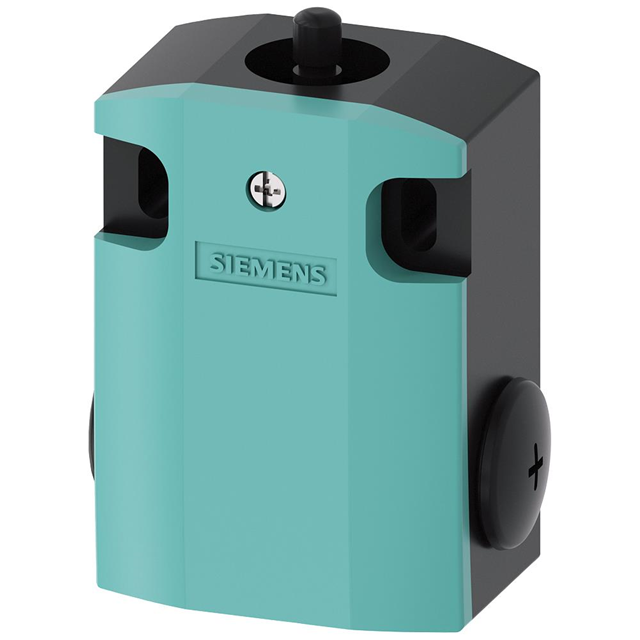

3SE51220BA001CA0

Active

Siemens

SWITCH LIMIT DPST 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

Documents3SE5 Position and Safety Switches Sales Guide 3SE5 Position and Safety Switches Selection Guide +2

3SE51220BA001CA0

Active

Siemens

SWITCH LIMIT DPST 6A 125V

Deep-Dive with AI

Documents3SE5 Position and Safety Switches Sales Guide 3SE5 Position and Safety Switches Selection Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SE51220BA001CA0

Actuator Type	Round (Pin Plunger)
Circuit	DPST-NO/NC
Current Rating (Amps)	3 A, 6 A
Electrical Life	100000 Cycles
Ingress Protection	IP66/IP67
Mechanical Life	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	2039 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom, On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

3SE5122 Series

Part	Operating Force	Actuator Type	Voltage Rating - DC	Mechanical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Current Rating (Amps)	Voltage Rating - AC	Circuit	Switch Function	Electrical Life	Termination Style	Overtravel	Overtravel
Siemens 3SE51220BA001CA0	2039 gf	Round (Pin Plunger)	24 V	15000000 Cycles	Chassis Mount	-25 °C	85 °C	IP66/IP67	3 A 6 A	125 V	DPST-NO/NC	Off-Mom On-Mom	100000 Cycles	Screw Terminal
Siemens 3SE51220KB01	2039 gf	Round (Pin Plunger)	24 V	15000000 Cycles	Chassis Mount	-25 °C	85 °C	IP66/IP67	3 A 6 A	125 V	3PST-2NC/1NO	Off-Mom On-Mom	100000 Cycles	Screw Terminal
Siemens 3SE51220PC02	2039 gf	Round (Pin Plunger)	24 V	15000000 Cycles	Chassis Mount	-25 °C	85 °C	IP66/IP67	3 A 6 A	125 V	3PST-2NO/1NC	Off-Mom On-Mom	100000 Cycles	Screw Terminal	3 mm	0.118 in
Siemens 3SE51220LH50		Side Rotary Adjustable Roller	24 V	15000000 Cycles	Chassis Mount	-25 °C	85 °C	IP66/IP67	3 A 6 A	125 V	3PST-2NC/1NO	Off-Mom On-Mom	100000 Cycles	Screw Terminal
Siemens 3SE51220KA001AJ0	2039 gf	Round (Pin Plunger)	24 V	15000000 Cycles	Chassis Mount	-40 °C	85 °C	IP66/IP67	3 A 6 A	125 V	3PST-2NC/1NO	Off-Mom On-Mom	100000 Cycles	Screw Terminal
Siemens 3SE51220CA00	2039 gf	Round (Pin Plunger)	24 V	15000000 Cycles	Chassis Mount	-25 °C	85 °C	IP66/IP67	3 A 6 A	125 V	DPST-NO/NC	Off-Mom On-Mom	100000 Cycles	Screw Terminal
Siemens 3SE51220PE01	1020 gf	Top Rotary Roller	24 V	15000000 Cycles	Chassis Mount	-25 °C	85 °C	IP66/IP67	3 A 6 A	125 V	3PST-2NO/1NC	Off-Mom On-Mom	100000 Cycles	Screw Terminal
Siemens 3SE51220BB01	2039 gf	Round (Pin Plunger)	125 VDC	15000000 Cycles	Chassis Mount	-25 °C	85 °C	IP66/IP67	6 A 550 mA	125 V	DPST-NO/NC	Off-Mom On-Mom	100000 Cycles	Screw Terminal
Siemens 3SE51220BF01	1020 gf	Top Rotary Roller	24 V	15000000 Cycles	Chassis Mount	-25 °C	85 °C	IP66/IP67	3 A 6 A	125 V	DPST-NO/NC	Off-Mom On-Mom	100000 Cycles	Screw Terminal
Siemens 3SE51223LA00	2039 gf	Round (Pin Plunger)		15000000 Cycles	Chassis Mount	-25 °C	60 °C	IP66/IP67	6 A	230 V	3PST-2NC/1NO	Off-Mom On-Mom	100000 Cycles	Screw Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 130.12
