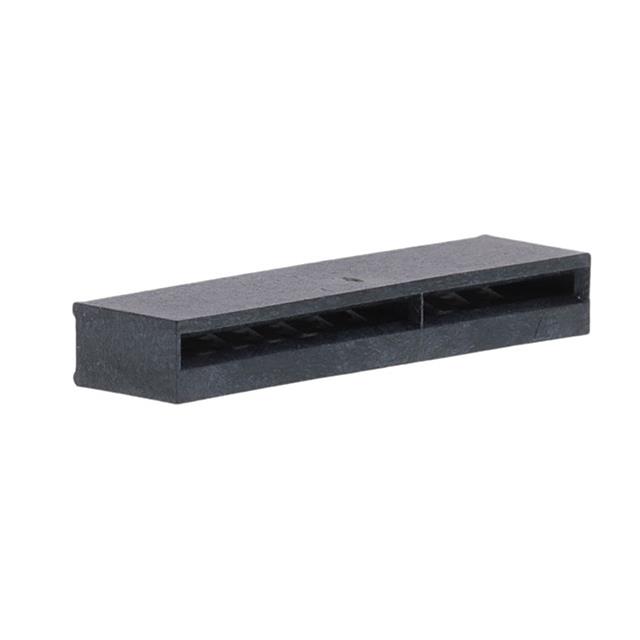

PEC-10-01-T-S

Active

Samtec Inc.

CONN CARD EDGE SKT 10 POS 2.54MM SOLDER ST THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN CARD EDGE SKT 10 POS 2.54MM SOLDER ST THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	PEC-10-01-T-S

Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Beryllium Copper
Contact Type	Loop Bellows
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions/Bay/Row [custom]	6
Number of Positions/Bay/Row [custom]	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder

Part	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Material - Insulation	Contact Material	Pitch [x]	Pitch [x]	Color	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Rows	Number of Positions	Contact Finish	Contact Type	Card Type
Samtec Inc. PEC-10-01-T-S	Solder	Surface Mount	105 ░C	-55 °C	Single	Liquid Crystal Polymer (LCP)	Beryllium Copper	2.54 mm	0.1 in	Black	Female	6	4	1	10	Tin	Loop Bellows	Non Specified - Single Edge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Female Connector Non Specified - Single Edge Tin 0.100" (2.54mm) Black
