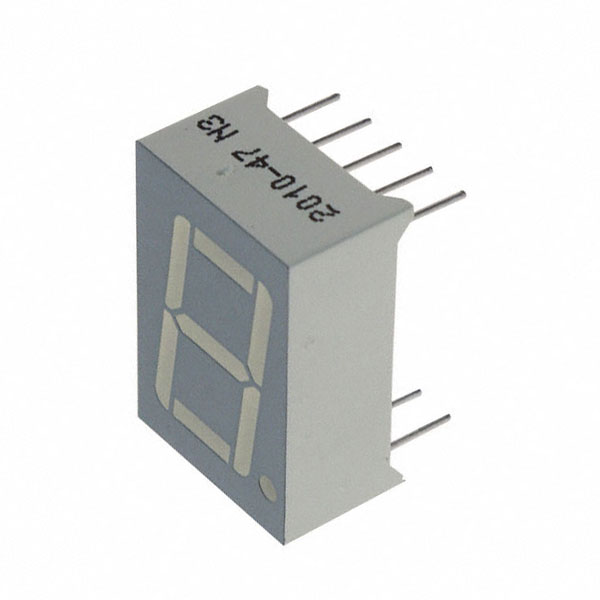

SA56-11GWA

Active

Kingbright

DISPLAY SEGMENTED MODULE 1DIGIT 8LED GREEN CA 10-PIN DIP MODULE

Find alt

Alpha

SA56-11GWA

Active

Kingbright

DISPLAY SEGMENTED MODULE 1DIGIT 8LED GREEN CA 10-PIN DIP MODULE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

SA56-11 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)

Technical Specifications

Parameters and characteristics for this part

Specification	SA56-11GWA

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Display Type	7-Segment
Millicandela Rating	11 mcd
Number of Characters	1
Package Length	0.6 in
Package Name	10-DIP
Power Dissipation (Max)	62.5 mW
Size / Dimension Depth	0.315 in
Size / Dimension Height	0.75 in
Size / Dimension Width	0.5 in
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

SA56-11 Series

Part	Digit/Alpha Size	Size / Dimension Height	Size / Dimension Width	Size / Dimension Depth	Millicandela Rating	Package Length	Package Name	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max)	Display Type	Number of Characters	Wavelength - Peak	Common Pin	Color	Current - Test
Kingbright SA56-11YWA	0.56 in	0.75 in	0.5 in	0.315 in	6.5 mcd	0.6 in	10-DIP	2.1 V	75 mw	7-Segment	1	590 nm	Common Anode	Yellow	20 mA
Kingbright SA56-11CGKWA	0.56 in	0.75 in	0.5 in	0.315 in	35 mcd	0.6 in	10-DIP	2.1 V	75 mw	7-Segment	1	574 nm	Common Anode	Green	20 mA
Kingbright SA56-11SRWA	0.56 in	0.75 in	0.5 in	0.315 in	34 mcd	0.6 in	10-DIP	1.85 V	75 mw	7-Segment	1	660 nm	Common Anode	Red	20 mA
Kingbright SA56-11EWA	0.56 in	0.75 in	0.5 in	0.315 in	6.4 mcd	0.6 in	10-DIP	2 V	75 mw	7-Segment	1	627 nm	Common Anode	Red	20 mA
Kingbright SA56-11SURKWA	0.56 in	0.75 in	0.5 in	0.315 in	97 mcd	0.6 in	10-DIP	1.95 V	75 mw	7-Segment	1	645 nm	Common Anode	Red	20 mA
Kingbright SA56-11GWA	0.56 in	0.75 in	0.5 in	0.315 in	11 mcd	0.6 in	10-DIP	2.2 V	62.5 mW	7-Segment	1	565 nm	Common Anode	Green	20 mA
Kingbright SA56-11SYKWA	0.56 in	0.75 in	0.5 in	0.315 in	160 mcd	0.6 in	10-DIP	2 V	75 mw	7-Segment	1	590 nm	Common Anode	Yellow	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SA56-11GWA | Datasheet
